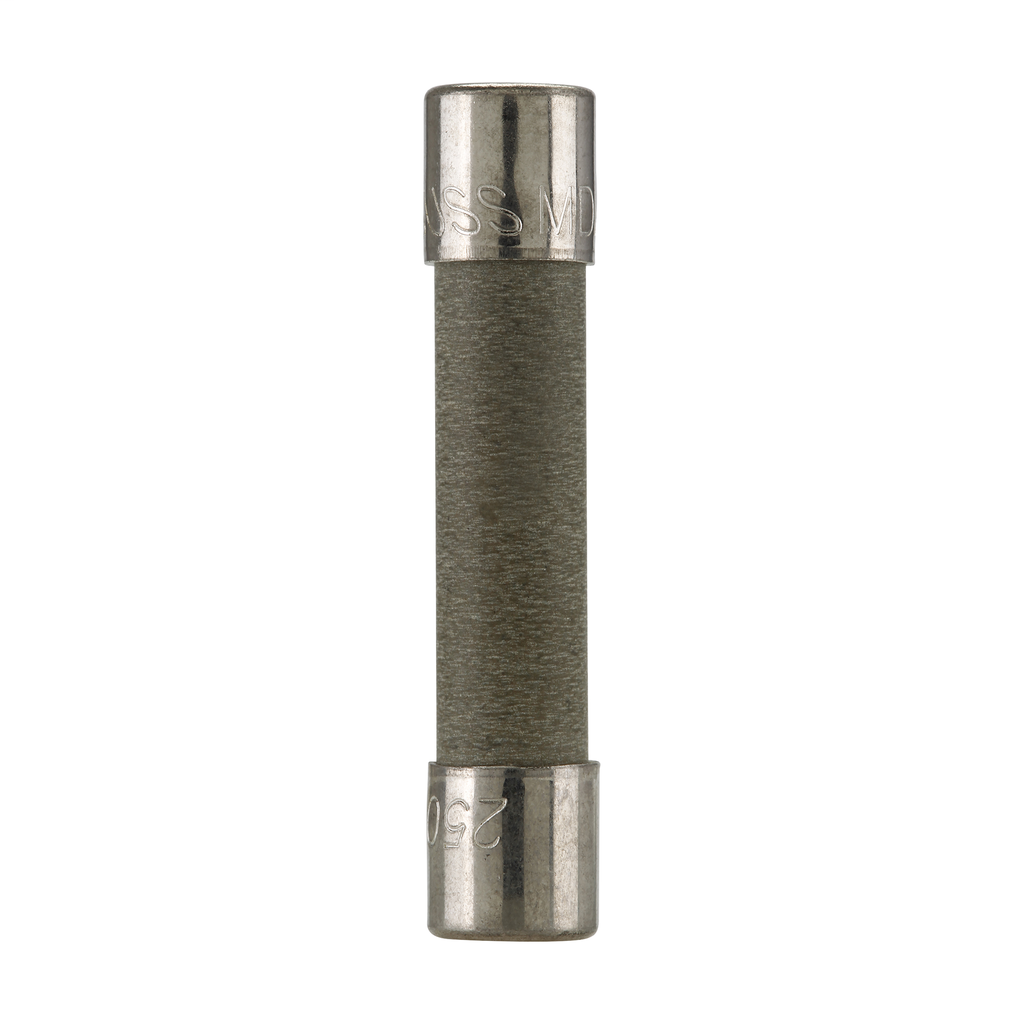

Eaton Bussmann series time-delay fuse
Product image thumbnail 0
Product image thumbnail 1
$6.19/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # MDA-15
Codale Part # 44582
Eaton Bussmann series time-delay fuse

Overview

UPC 05171272307
Product Description SMALL DIMENSION FUSE
Codale Part No. 44582
Type Electronic
Application Electronic Circuits
Voltage Rating 250V
Length 1.25 IN
Amperage Rating 15A
Connection Type Ferrule end X ferrule end
Width .25 IN
Height .25 IN
Interrupt Rating 750 AIC at 250 Vac, 10 kAIC at 125 Vac
Diameter .25 IN
Weight .006 LB
Response Time 60 min. maximum at 135%, 120 secs. maximum at 200%
Resistance Typical DC cold: .00565 ohms
Packaging Type Standard
Catalog Description BUSS SMALL DIMENSION FUSE
Product Short Description Eaton Bussmann series time-delay fuse
MDM Item Long Description BUSS SMALL DIMENSION
MDM Pkg GTiN 00051712723077
Length 1.25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 250 Volt
Type Electronic
Diameter .25 in
Applications Electronic Circuits
Height .25 in
Weight .006 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
Tc Connection Ferrule End X Ferrul
Amperage 15 Amp
Response Time 120 S Maximum At 200
End Type Ferrule
Interrupt Rating 10 kA
