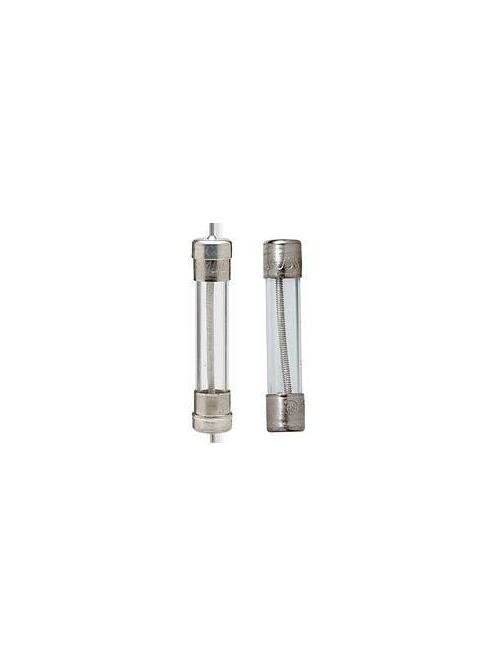

Bussmann Series MDL-1 Small Dimension Fuse

$2.94/ea

Usually ships within 6 to 8 Days

Adding...

Already a Customer? Log in to view your pricing

Specifications

Height: .25 IN
Length: 1.25 IN
Width: .25 IN
Weight: .005 LB
Type: Electronic- small dimension
Application: Electronic circuits
Voltage Rating: 250 Vac, 32 Vdc (self certified)
Amperage Rating: 1A
Interrupt Rating: 35 AIC at 250 Vac, 10 kAIC at 125 Vac
Connection: Ferrule end X ferrule end
Packaging Type: Standard
Fuse Indicator: Non Indicating
Response Time: 60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200%

UPC	05171272443
Codale Part No.	44283
Type	Electronic- small dimension
Application	Electronic circuits
Voltage Rating	250 Vac, 32 Vdc (self certified)
Length	1.25 IN
Amperage Rating	1A
Connection Type	Ferrule end X ferrule end
Width	.25 IN
Height	.25 IN
Interrupt Rating	35 AIC at 250 Vac, 10 kAIC at 125 Vac
Weight	.005 LB
Response Time	60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200%
Packaging Type	Standard
Item Long Description	BUSS SMALL DIMENSION FUSE
Length	1.25 in
Width	.25 in
Size	1/4 In Diameter X 1-1/4 In Length
Voltage	250 Volt
Type	Electronic,Small Dimension
Applications	Electronic Circuits
Height	.25 in
Weight	.005 lb
Standard	CE,CSA,UL 248-14
Connection Type	Ferrule
Family Brand Name	Bussmann Series
Tc Connection	Ferrule End X Ferrule End
Amperage	1 Amp
Response Time	120 seconds maximum at 200%,5 seconds minimum at 200%,60 minutes maximum at 135%
End Type	Ferrule
Interrupt Rating	10 kA
