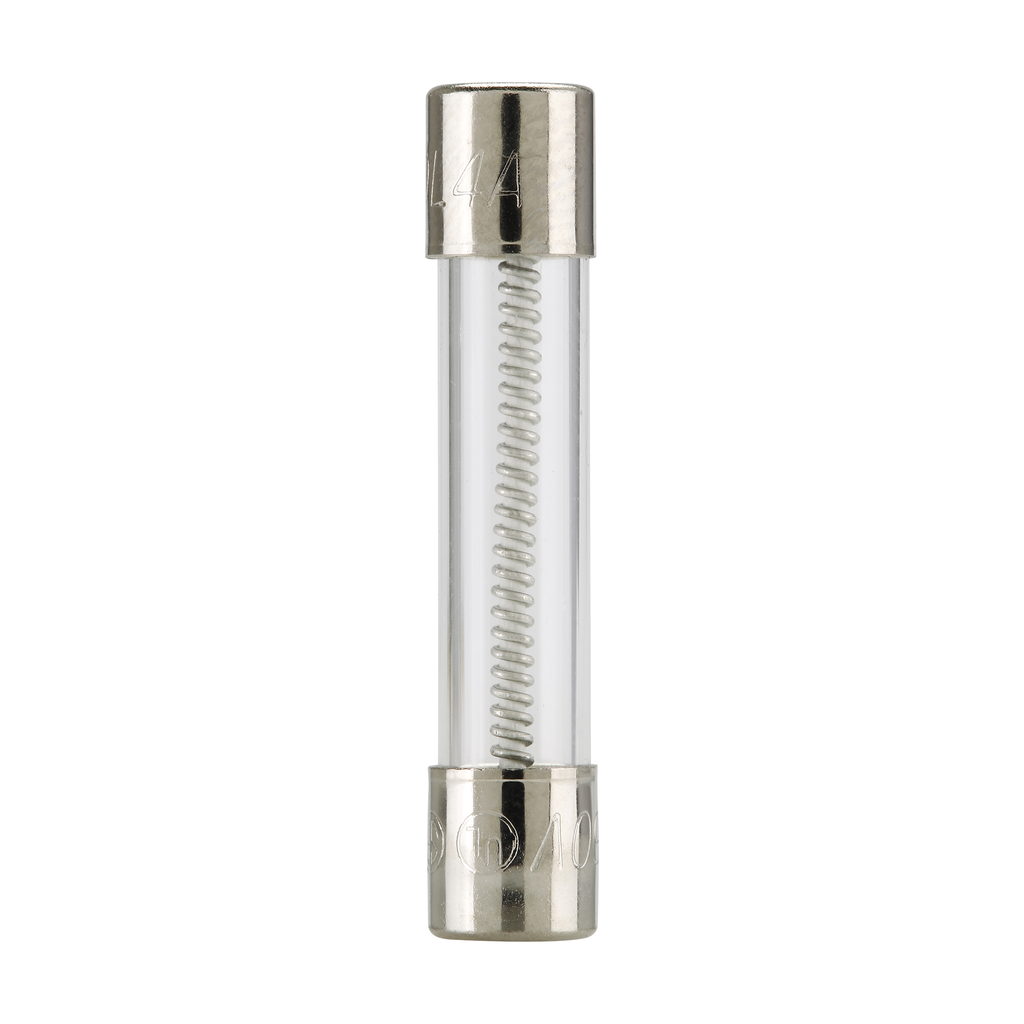

Bussmann Series MDL-4 Small Dimension Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.27/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # MDL-4
Codale Part # 44080

Specifications

  • Height: .25 IN
  • Length: 1.25 IN
  • Width: .25 IN
  • Weight: .004 LB
  • Type: Electronic- small dimension
  • Application: Electronic circuits
  • Voltage Rating: 250 Vac, 32 Vdc (self certified)
  • Amperage Rating: 4A
  • Interrupt Rating: 200 AIC at 250 Vac, 10 kAIC at 125 Vac
  • Connection: Ferrule end X ferrule end
  • Packaging Type: Standard
  • Fuse Indicator: Non Indicating
  • Response Time: 60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200%

Overview

UPC 05171272453
Codale Part No. 44080
Type Electronic- small dimension
Application Electronic circuits
Voltage Rating 250 Vac, 32 Vdc (self certified)
Length 1.25 IN
Amperage Rating 4A
Connection Type Ferrule end X ferrule end
Width .25 IN
Height .25 IN
Interrupt Rating 200 AIC at 250 Vac, 10 kAIC at 125 Vac
Weight .004 LB
Response Time 60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200%
Packaging Type Standard
Item Long Description BUSS SMALL DIMENSION FUSE
Length 1.25 in
Width .25 in
Size 1/4 In Diameter X 1-1/4 In Length
Voltage 250 Volt
Type Electronic,Small Dimension
Applications Electronic Circuits
Height .25 in
Weight .004 lb
Standard CE,CSA,UL 248-14
Connection Type Ferrule
Family Brand Name Bussmann Series
Tc Connection Ferrule End X Ferrule End
Amperage 4 Amp
Response Time 12 seconds minimum at 200%,120 seconds maximum at 200%,60 minutes maximum at 135%
End Type Ferrule
Interrupt Rating 10 kA
