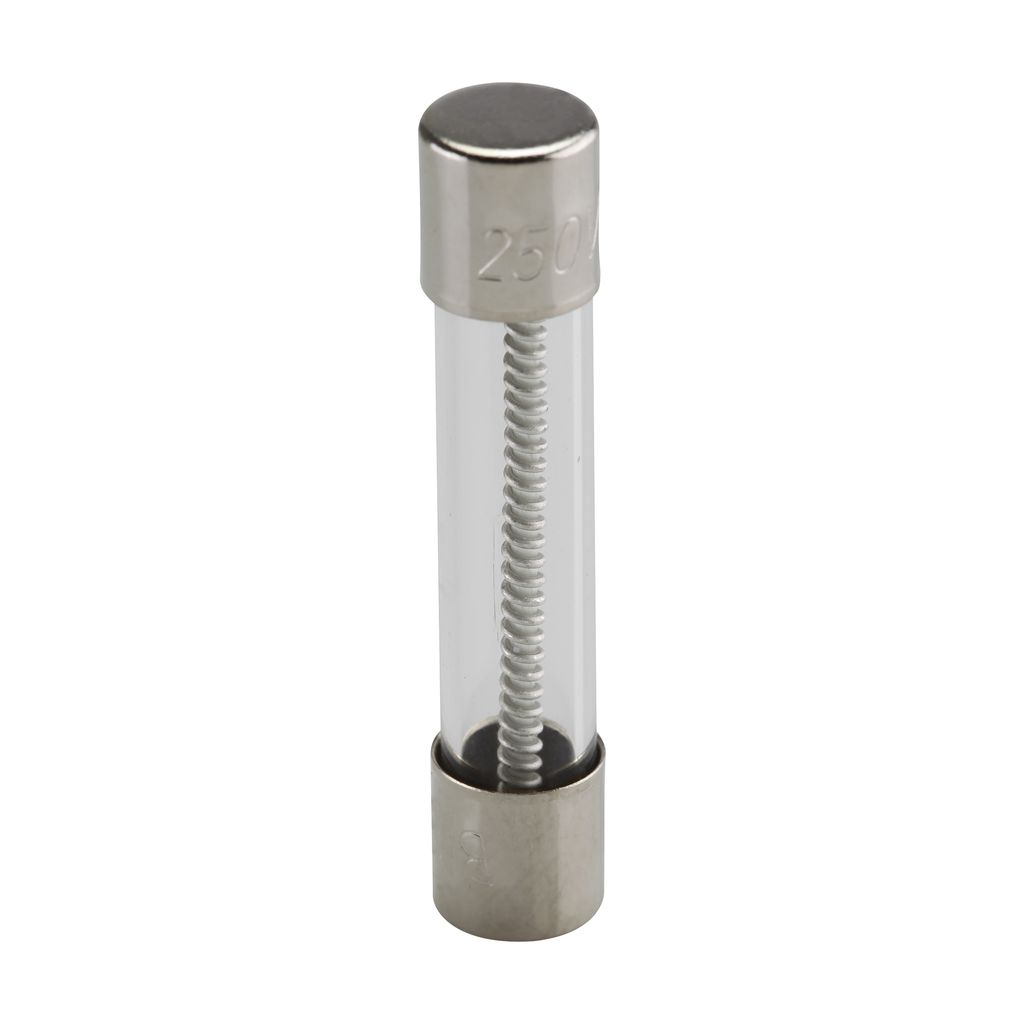

Eaton Bussmann series time-delay fuse | Codale Electric Supply

UPC	05171272466
Product Description	SMALL DIMENSION FUSE SLOW BLOW
Codale Part No.	47655
Type	Electronic- small dimension
Application	Electronic circuits
Voltage Rating	250 Vac, 32 Vdc (self certified)
Length	1.25 IN
Amperage Rating	6A
Connection Type	Ferrule end X ferrule end
Width	.25 IN
Height	.25 IN
Interrupt Rating	200 AIC at 250 Vac, 10 kAIC at 125 Vac
Weight	.004 LB
Response Time	60 min maximum at 135%, 120 s maximum at 200%, 5 s minimum at 200%
Packaging Type	Standard
Product Short Description	Eaton Bussmann series time-delay fuse
Item Long Description	BUSS SMALL DIMENSION FUSE SLOW BLOW
MDM Pkg GTiN	00051712724661
Length	1.25 in
Width	.25 in
Size	1/4 In Diameter X 1-1/4 In Length
Voltage	250 Volt
Type	Electronic,Small Dimension
Applications	Electronic Circuits
Height	.25 in
Weight	.004 lb
Standard	CE,CSA,UL 248-14
Connection Type	Ferrule
Family Brand Name	Bussmann Series
Tc Connection	Ferrule End X Ferrul
Amperage	6 Amp
Response Time	12 S Minimum At 200%
End Type	Ferrule
Interrupt Rating	10 kA
