General Purpose Fuse | Codale Electric Supply

UPC	05171210155

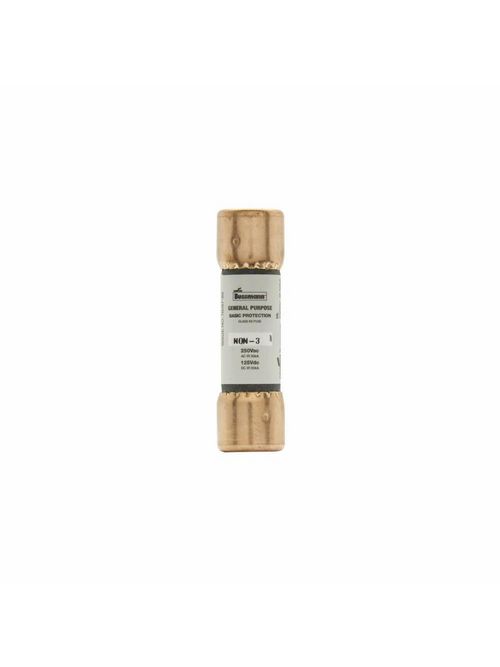

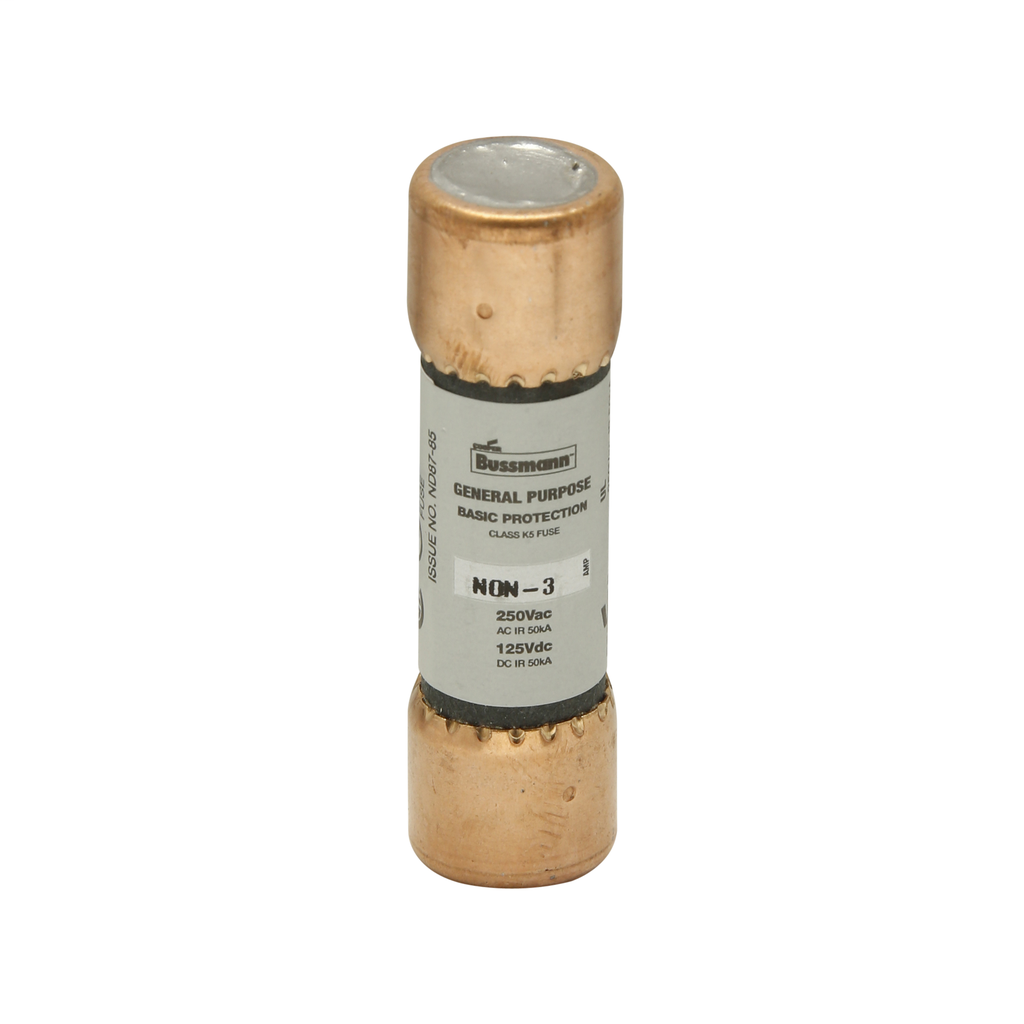

Product Description	ONE TIME FUSE
Codale Part No.	44175
Type	Non Current-limiting
Application	Light duty circuit locations
Voltage Rating	250 Vac, 125 Vdc
Length	.56 IN
Amperage Rating	10A
Connection Type	Ferrule end X ferrule end
Width	.56 IN
Height	2 IN
Interrupt Rating	50 kAIC at 250 Vac, 50 kAIC at 125 Vdc
Weight	.25 LB
Class	Class H
Packaging Type	Standard
Catalog Description	BUSS ONE TIME FUSE
Product Short Description	General Purpose Fuse
Item Long Description	Eaton Bussmann Series NON Fuse, General Purpose Fuse, 10 A, 250 Vac, 125 Vdc, 50 kAIC at 250 Vac, 50 kAIC at 125 Vdc interrupt rating, Class H, Ferrule end X ferrule end connection, 10 units, Rejection style
MDM Pkg GTiN	00051712101554
Length	2 in
Size	0.56 In Diameter X 2.00 In Length
Voltage	125 Volt
Type	Non Current Limiting
Applications	Ind Facilities & Factories - Facility: Safety and Security Systems
Height	.56 in
Weight	.25 lb
Connection Type	Ferrule
Family Brand Name	Bussmann Series
Class	Class H
Tc Connection	Ferrule end x ferrul
Amperage	10 Amp
End Type	Ferrule
Interrupt Rating	50 kA
Blade Dimensions	2.0000 IN X 0.5600 I
Sub Brand	Bussmann Series
Standard	CE,CSA,UL 248-9
