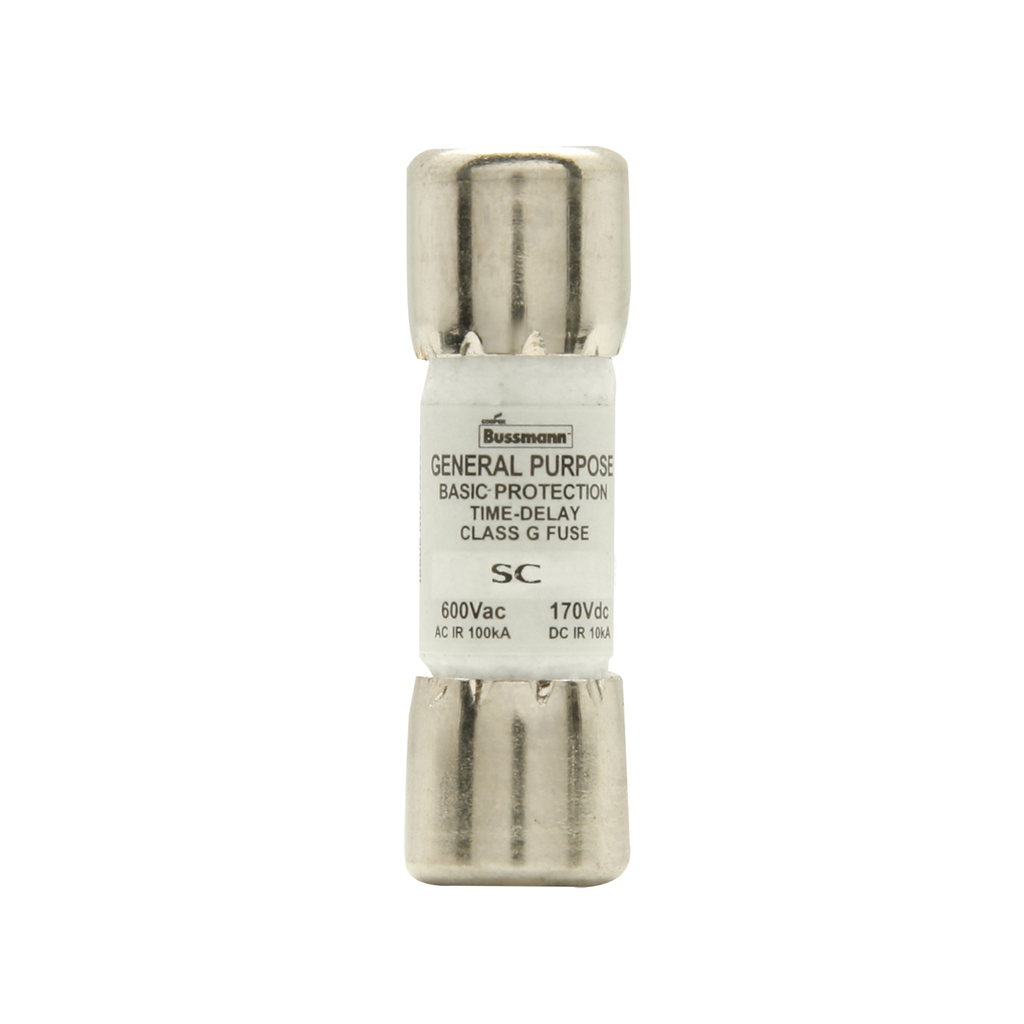

General Purpose Fuse
Product image thumbnail 0
Product image thumbnail 1
$11.67/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # SC-3
Codale Part # 45719
General Purpose Fuse

Overview

UPC 05171225003
Codale Part No. 45719
Type Current-limiting, fast acting
Voltage Rating 600 Vac, 170 Vdc
Length 1 IN
Amperage Rating 3A
Connection Type Ferrule end X ferrule end
Width 1 IN
Height 1 IN
Interrupt Rating 100 kAIC at 600 Vac, 10 kAIC at 170 Vdc
Diameter .41 IN
Weight .163 LB
Class Class G
Packaging Type Standard
Catalog Description BUSS SC FUSE CLASS G CLASS G
Product Short Description General Purpose Fuse
Item Long Description Eaton Bussmann Series SC Fuse,General Purpose Fuse,Current-Limiting,fast-acting,3 A,600 Vac,170 Vdc,100 kAIC at 600 Vac,10 kAIC at 170 Vdc,Class G,Ferrule end X ferrule end connection,SC series,0.41 in dia.,Rejection style
MDM Pkg GTiN 00051712250030
Length 1.31 in
Width .41 in
Size 0.41 In Diameter X 1.31 In Length
Voltage 170 Volt
Type Current Limiting,Fast Acting
Diameter .41 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .41 in
Weight .163 lb
Standard CE,CSA,UL 248-5
Connection Type Ferrule
Family Brand Name Bussmann Series
Class G
Tc Connection Ferrule End X Ferrul
Amperage 3 Amp
End Type Ferrule
Interrupt Rating 10 kA
Blade Dimensions 1.3100 IN X 0.4100 I
Sub Brand Bussmann Series
