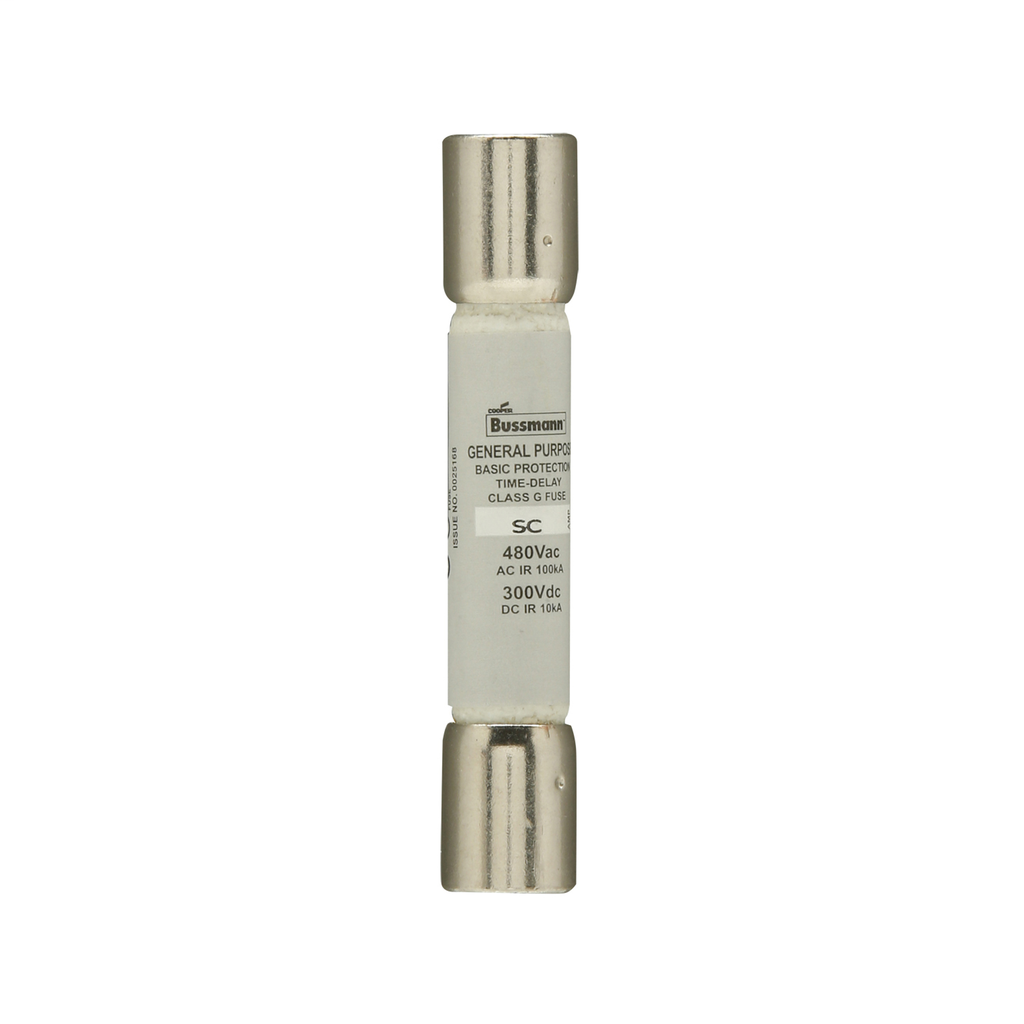

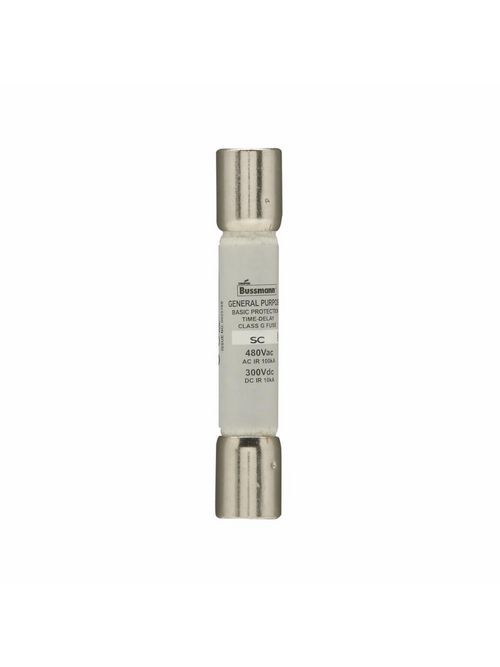

Bussmann Series SC-40 Class G Fuse
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$14.67/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Bussmann
Mfg Catalog # SC-40
Codale Part # 44605

Specifications

  • Fuse Indicator: Non Indicating
  • Special Features: Rejection style
  • Interrupt Rating: 100 kAIC at 480 Vac, 10 kAIC at 300 Vdc
  • Type: Current-limiting, time delay
  • Connection: Ferrule end X ferrule end
  • Response Time: 12s at 200%
  • Class: Class G
  • Voltage Rating: 480 Vac, 300 Vdc
  • Amperage Rating: 40A
  • Diameter: .41 IN
  • Packaging Type: Standard

General

  • UPC: 051712250405
  • Product Length/Depth: 2.25 IN
  • Product Height: .41 IN
  • Product Width: .41 IN
  • Product Weight: .35 LB
  • Warranty: Not Applicable
  • Compliances: CE Marked

Overview

UPC 05171225040
Codale Part No. 44605
Type Current-limiting, time delay
Voltage Rating 480 Vac, 300 Vdc
Length .41 IN
Amperage Rating 40A
Connection Type Ferrule end X ferrule end
Width .41 IN
Height 2.25 IN
Interrupt Rating 100 kAIC at 480 Vac, 10 kAIC at 300 Vdc
Diameter .41 IN
Weight .35 LB
Class Class G
Response Time 12s at 200%
Packaging Type Standard
Item Long Description Eaton Bussmann Series SC Fuse,General Purpose Fuse,Current-Limiting,time delay,40 A,480 Vac,300 Vdc,100 kAIC at 300 Vdc,10 kAIC at 300 Vdc,Class G,12s at 200% response time,Ferrule end X ferrule end connection,SC series,0.41 in dia.
Length 2.25 in
Width .41 in
Size 0.41 In Diameter X 2.25 In Length
Voltage 480 Volt
Type Current Limiting,Time Delay
Diameter .41 in
Applications Ind Facilities & Factories - Facility: Safety and Security Systems
Height .41 in
Weight .35 lb
Connection Type Ferrule
Family Brand Name Bussmann Series
Class G
Tc Connection Ferrule End X Ferrule End
Amperage 40 Amp
End Type Ferrule
Interrupt Rating 10 kA
Blade Dimensions 2.2500 IN X 0.4100 IN X 0.4100 IN
Sub Brand Bussmann Series
