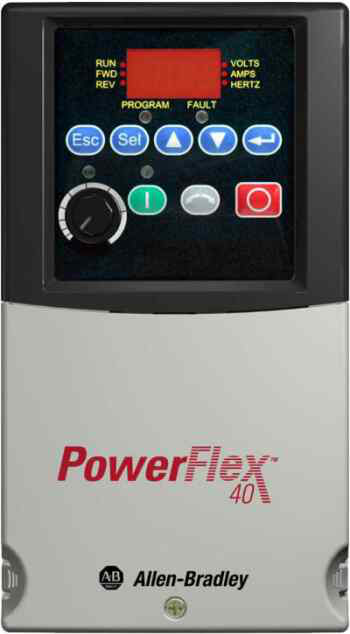

A-B 22B-D1P4N104 POWERFLEX DRIVE 1/2HP 480V
$1,070.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 22B-D1P4N104
Codale Part # 1433023
A-B 22B-D1P4N104 POWERFLEX DRIVE 1/2HP 480V

Overview

UPC 82091907853
Catalog Description AC Drive,0.4 kW (.5 HP),480V AC Input,3 PH,50-60 Hz,1.4 A Output,IP20,UL-NEMA Type Open,Panel Mounting,With Brake IGBT, Frame B,0.98 PF,Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections
Codale Part No. 1433023
Product Long Description AC Drive, 0.4 kW (.5 HP), 480V AC Input, 3 PH, 50-60 Hz, 1.4 A Output, IP20, UL-NEMA Type Open, Panel Mounting, With Brake IGBT, FrameB, 0.98 PF, Integral Keypad And Led Display, RS485, Fixed Terminal Block Connections
Voltage Rating 480VAC, 3PH
Enclosure Specification IP20 (Open)
Input Voltage 480VAC, 3PH
Frame Size Frame Size B
Output Current 1.4 Amps
Product Short Description PowerFlex 40 AC Drive, 480VAC, 3PH, 1.4 Amps, 0.37 kW, 0.5 HP,Frame Size B, IP20 (Open), LED Display, Digital Keypad, No CE Compliant Filter, RS485
MDM Item Long Description AC Drive, 0.4 kW (.5
MDM Pkg GTiN 00820919078538
Voltage 480 Volt
Type AC Drive
Applications Industrial Area Permitted, Supporting Protocol for DeviceNet, EtherNet/IP, LON, MODBUS, Other Bus Systems, PROFIBUS
Input Voltage 480 V
Family Brand Name Allen Bradley
Enclosure Type IP20/UL/NEMA Type Op
Power Rating 0.4 kW
Control Type RS485
Tc Connection Fixed Terminal Block
Output 1 Analog
Output Current 1.4 A
Blade Dimensions 100 mm W x 136 mm D
Power Factor 0.98
Enclosure IP20,UL-NEMA Type Op
Sub Brand PowerFlex 40
MDM PRODUCT SLANG TERM AC VFD , inverter ,
