Manufacturer | ABB Thomas & Betts |
---|---|
Mfg Catalog # | 54909BE |
Codale Part # | 10225 |
UPC | 78621089011 |

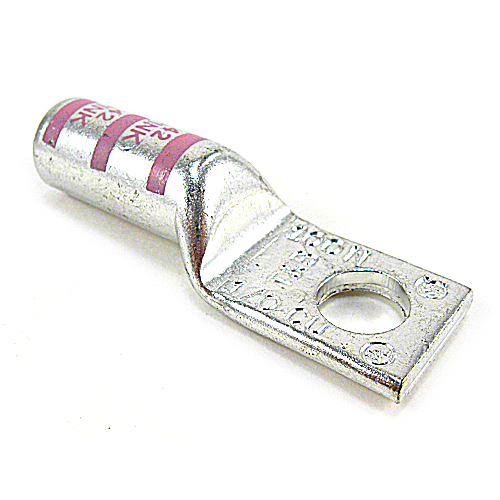

Catalog Description | Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 1/0 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 42, Die Color Code Pink |
Codale Part No. | 10225 |
Product Long Description | Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 1/0 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 42, Die Color Code Pink |
Type | Long Barrel |
Brand Name | Color-Keyed |
Material | Copper |
Color | Pink |
Voltage Rating | Max 35kV |
Insulation Material | None |
Cable Size | 1/0 AWG |
Item Long Description | Copper One-Hole Lug, Long Barrel, Blind End, Max 35kV, Wire Size 1/0 AWG, 3/8 Inch Bolt Size, Tin Plated, Die Code 42, Die Color Code Pink |
MDM Pkg GTiN | 05414363144434 |
Finish | Tin Plated |
Color | Pink |
Type | Long Barrel |
Barrel Type | Long, Straight |
Material | Copper |
Stud Size | 3/8 in |
Conductor Size | 1/0 AWG |
Number of Holes | 1 Hole |
Cable Size | 1/0 AWG |
Family Brand Name | Color-Keyed |
Insulated? | No |
Die Code | 42 |
Sub Brand | Color-Keyed |
Voltage | null |
