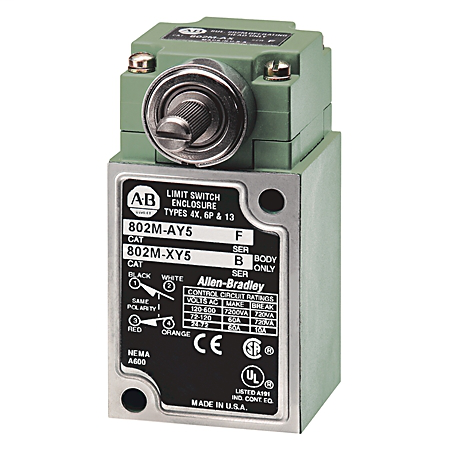

Allen-Bradley 802M-NPY5 Factory Sealed Limit Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 802M-NPY5
Codale Part # 130236


  • Pre-wired and factory sealed
  • Operating heads are mountable in four positions, 90° apart


Pre-Wired Factory Sealed Data

  • Switch Components: Complete Switch
  • Actuation Type: Lever Type, Spring Return, Neutral Position
  • Number of Circuits: 4-Circuit
  • Mode of Operation: CW and CCW operation
  • Travel to Operate Contacts (Max.): 16°
  • Torque to Operate Contacts (Max.): 0.79N.m (7lb in) (CW)
  • Travel to Reset Contacts (Max.): 7°
  • Maximum Travel: 75°


  • 24V DC Switch: Not 24V DC Model
  • Indicating Lights: No Indicating Light(s)
  • Connection Options: 1.52m (5ft) length STO cable (standard)

Operating Lever Data

  • Operating Lever: Operating Lever Not Selected


Codale Part No. 130236
Product Long Description Factory Sealed Limit Switch, Complete Switch, Rotary Lever Neutral Position, 4 Circuits, Cable, 5 Ft Standard, CW and CCW Operation, Standard, 2 Circuit, 4 Circuit Neutral, Neutral Position Body
Product UPC 66207342540
Type Prewired, Factory Sealed, 4-Circuit, Neutral Position
Family Brand Name Allen Bradley
Tc Connection Cable
Actuator Lever
Cable Length 5 ft
Number of Poles 4 Pole
Connection Type Cable
Action Spring Return
