Non-insulated; Tin Plated YA6CL6 | Codale Electric Supply

UPC	78181001896

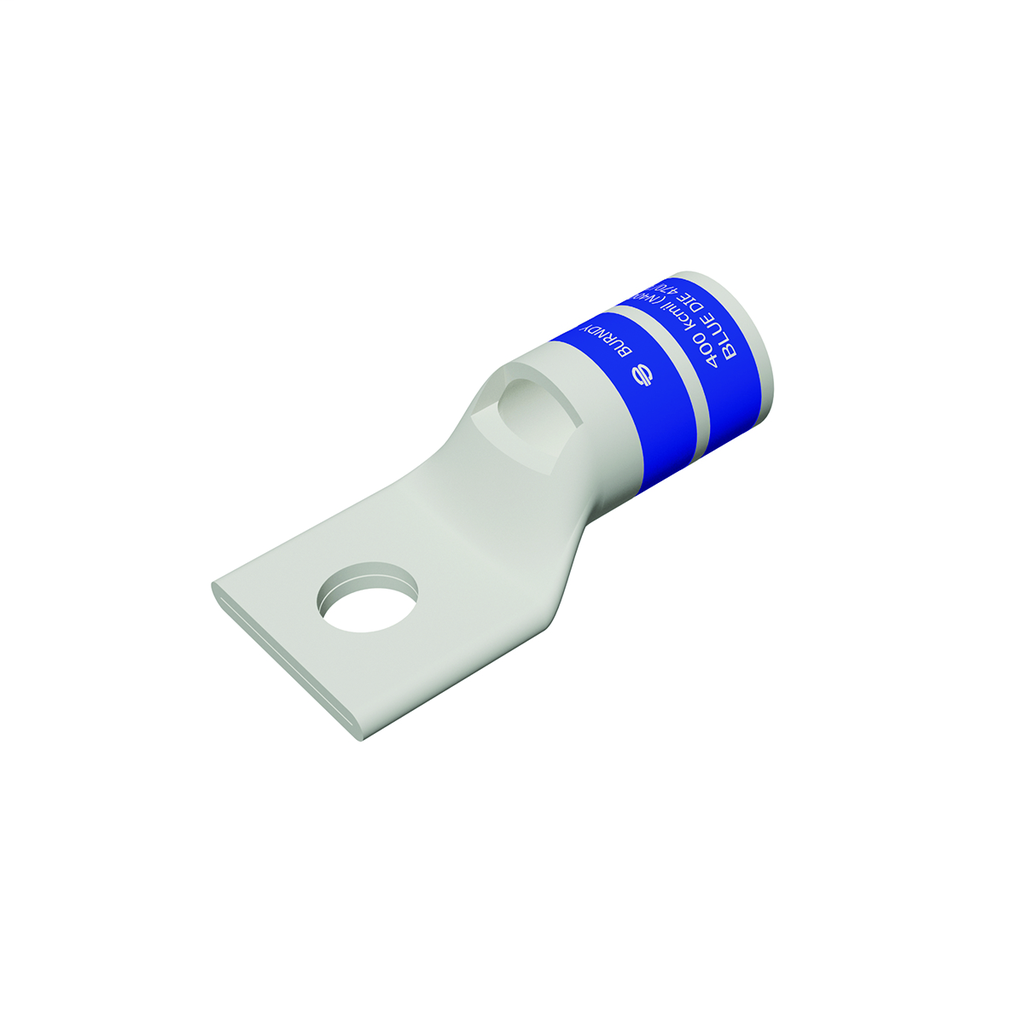

Catalog Description	Copper Compression Lug, 1 Hole w/ Inspection Window, 6 AWG, 1/2" Stud, Short Barrel, Tin Plated.
Codale Part No.	131119
Product Long Description	Copper Compression Lug, 1 Hole w/ Inspection Window, 6 AWG, 1/2" Stud, Short Barrel, Tin Plated.
Type	Standard Barrel, Tin Plated
Sub Brand	HYLUG
Application	For Aluminum & Copper Conductors
Material	Copper
Connector Type	Terminal
Color Code	Blue
Product Short Description	Non-insulated; Tin Plated YA6CL6
Item Long Description	Copper Compression Lug, 1 Hole w/ Inspection Window, 6 AWG, 1/2" Stud, Short Barrel, Tin Plated.
MDM Pkg GTiN	00781810018965
Type	Non-Insulated
Material	Copper
Stud Size	1/2 in
Number of Holes	1 Hole
Applications	For Aluminum & Copper Conductors
Cable Size	6 AWG
Family Brand Name	Burndy
Sub Brand	Hylug
Length	1.87 in
Finish	Electro Tin Plated
Hole Size	13 mm
Barrel Type	Standard, Short Cham
Conductor Size	6 AWG Stranded Coppe
Connection Type	Terminal
Plating Type	Tin - Electro Plated
Tongue Type	Standard, Straight
Strip Length	9/16 in
Barrel Diameter	0.29 in
Temperature Rating	90 C
Conductor Material	Copper
Plated?	Yes
Overall Length	1.87 in
Barrel Length	0.54 in
Die Code	7
CSA	Yes
Max Voltage	35000 V
Color Coding	Blue
Used With	Aluminum and Copper Conductors
