Panduit HSTT09-48-Q .09 Inch (2.4 mm) Diameter Black Thin Wall Heat Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.14/pc (1 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # HSTT09-48-Q
Codale Part # 117950

Specifications

  • Product Segment: IEI
  • Product Type: Heat Shrink
  • Adhesive Lined: No
  • Color: Black
  • Material: Cross-Linked Polyolefin
  • Maximum Operating Temperature (°C): 135
  • Maximum Operating Temperature (°F): 275
  • Minimum Operating Temperature (°C): -55
  • Minimum Operating Temperature (°F): -67
  • Nominal Diameter (In.): 0.093
  • Nominal Diameter (mm): 2.4
  • Nominal Recovered Wall Thickness (mm): 0.5
  • Sub Brand: Dry-Shrink™
  • Nominal Recovered Wall Thickness (In.): 0.02
  • Overall Length (ft.): 4
  • Overall Length (In.): 48
  • Overall Length (mm): 1219.2
  • Overall Length (m): 1.22
  • Resistance Properties: Flame Retardant
  • Standards Met: UL: E122770; Mil Spec: AMS-DTL-23053/5 Class 1
  • Shrink Ratio: 2:1
  • Shrink Temperature (°F): 194
  • Shrink Temperature (°C): 90
  • Maximum Recovered Inside Diameter (In.): 0.046
  • Maximum Recovered Inside Diameter (mm): 1.2
  • Minimum Expanded Inside Diameter (In.): 0.093
  • Minimum Expanded Inside Diameter (mm): 2.4
  • Application: For Dry Locations; Insulating and protecting wires and cables

Packaging Details

  • UPC: 07498390588
  • GTIN Package: 00074983905881
  • Standard Package Volume Ft3: 0.1733
  • Standard Package Weight Pounds: 0.7300
  • Std Package Height In: 2.4
  • Std Package Height MM: 60.96
  • Std Package Length In: 49.4
  • Std Package Length MM: 1254.76
  • Std Package Width In: 2.6
  • Std Package Width MM: 66.04
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 25
  • Standard Carton Volume Ft3: 0.1733
  • Standard Carton Weight Pounds: 0.0000
  • Std Carton Length MM: 1254.76
  • Std Ctn Qty: 0
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: KR
  • RoHS Compliant: Compliant
  • EAN: 00074983905881
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: N
  • ARRA Compliant: N
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 25
  • Pallet Quantity: 8,000
  • Pallet Volume: 0.000000
  • Pallet Weight: 233.6000

Overview

Codale Part No. 117950

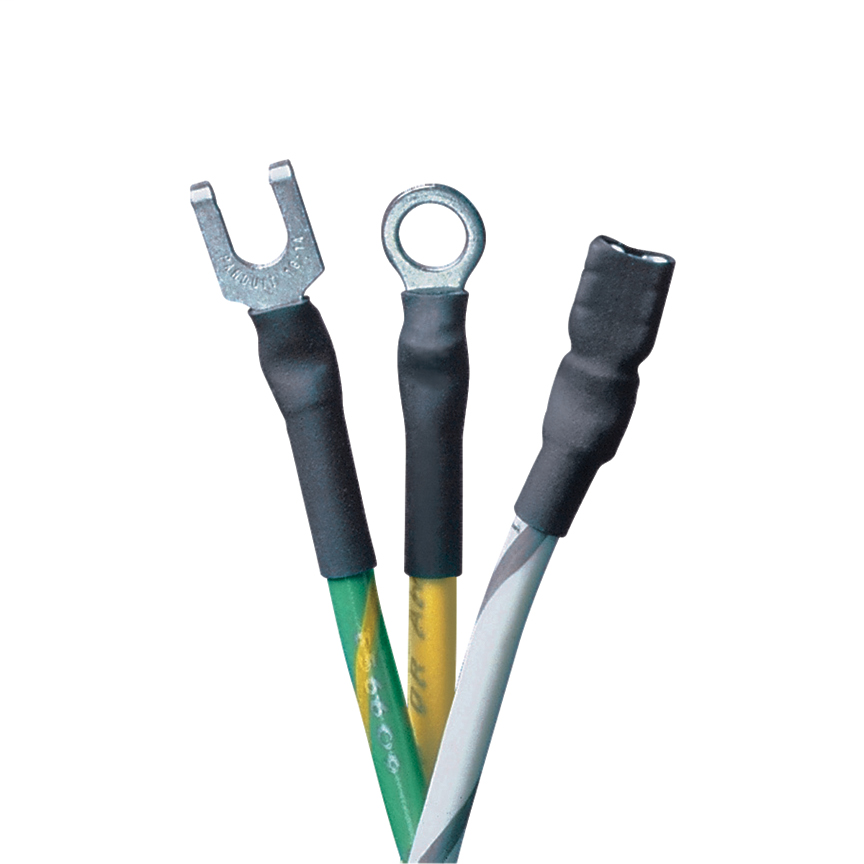

Product Long Description DRY-SHRINK Thin Wall Heat Shrink, 0.093 Inch (2.4 mm) Diameter, 0.046 Inch (1.2 mm) Maximum Recovered Inside Diameter, 48 Inch Lengths, 25 pieces, Black. For use in insulating, protecting, harnessing and identifying electrical and electronic components. Shrink Ratio is 2 to 1. Temperature Range is -67 degrees Fahrenheit to 275 degrees Fahrenheit (-55 degrees Celsius to 135 degrees Celsius). Voltage is 600 Volts. UL Recognized. CSA Certified. Military Specification AMS-DTL-23053/5 Class 1 (material performance only).
Application For Dry Locations
Material Flame retardant polyolefin cross-linked except clear
Color Black
Shrink Ratio 2:1
Product UPC 07498390588
Color Black
Type Flame Retardant
Thickness 0.02 IN
Material Polyolefin
Shrink Ratio 2:1
Applications For Dry Locations
Country of Origin KR
Pkg Qty 25
Family Brand Name Panduit
Outside Diameter 0.093 in
Overall Length 4 ft
Inside Diameter 0.046 IN
Sub Brand Dry-Shrink
MDM DDS PROP65 WARNING No
