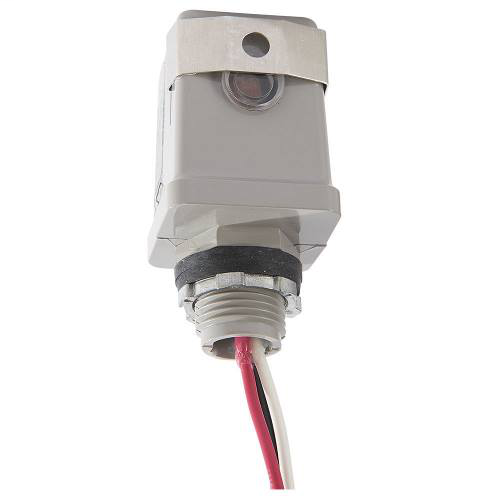

INTERMATIC K4123-C 208-277V PHOTO CONTROL 4100W W/ 1/2-IN STEM MOUNT
Product image thumbnail 0
Product image thumbnail 1
$17.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # K4123C
Codale Part # 103520
INTERMATIC K4123-C 208-277V PHOTO CONTROL 4100W W/ 1/2-IN STEM MOUNT

Overview

UPC 07827502959
Catalog Description The 208-277 V 50/60 Hz. 3100-4150 Watt "T" Stem Mounting The K4100 & K4400 Series Photo Controls feature stem mounting, thermal-type, controls with single and multi-voltage models. Thermal-type photo controls provide dusk-to-dawn lighting control and a delay action, which eliminates loads switching OFF due to car headlights, and lighting. The thermal-type controls feature a cadmium sulfide photocell and a sonic-welded polycarbonate case and lens to seal out moisture. The design utilizes a dual temperature compensating bimetal and composite resistor for reliable long life operation over ambient temperature extremes. These models are California Title 24 compliant.
Codale Part No. 103520
Product Long Description These photocontrols install on standard outdoor light fixtures and electrical boxes with 12"-14 NPSM thread or 78" punch-out holes for dusk-to-dawn ON/OFF control of outdoor lighting.
Housing Material Polycarbonate
Warranty length 2-year limited
MDM Item Long Description These photocontrols
MDM Pkg GTiN 00078275029590
Warranty Length 2 yr
Width 1 9/16 in
Size 1-9/16 LENGTH X 1-9/16 WIDTH X 3 DEPTH IN, 4 LENGTH X 4 WIDTH X 7.6 DEPTH CM
Color Gray
Operating Temperature 158 degrees F
Type Thermal Type Photo Cell
Applications Dusk to Dawn Lighting Control
Mounting Type Stem Mount
Depth 1 9/16 in
Height 3 in
Weight 0.2 lb
Standard UL Recognized,Califo
Frequency 50/60 Hz
Connection Type Color Coded Lead
Family Brand Name Intermatic
Tc Connection Color Coded Lead
Wire Length 228.6 mm
Power Consumption 1 W
Max Operating Temperature 158 degrees F
Min Operating Temperature -40 degrees F
Max Wire Size 18 AWG
