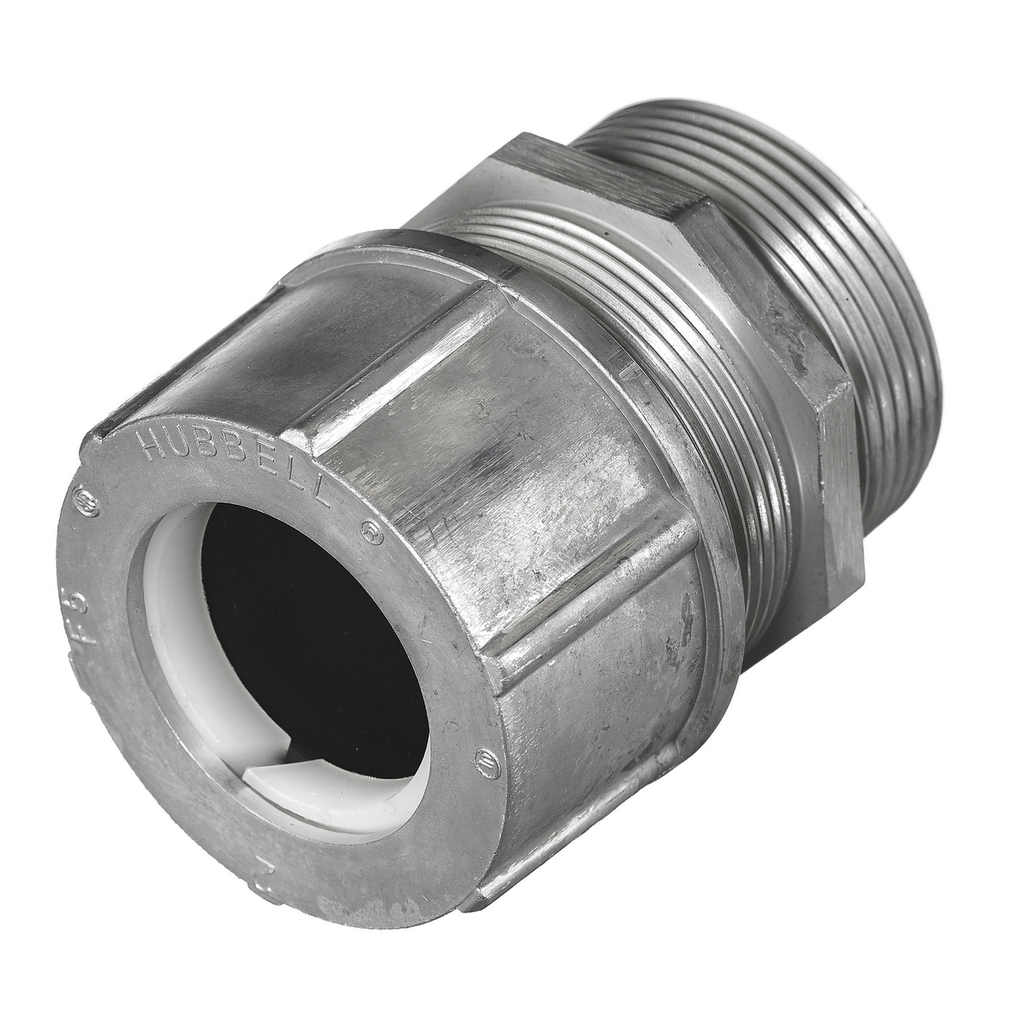

HUBBELL SHC1052 1-1/4-IN 1.00-1.125-IN CORD CONNECTOR
$32.29/ea
Usually ships within 9 to 15 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # SHC1052
Codale Part # 104390
HUBBELL SHC1052 1-1/4-IN 1.00-1.125-IN CORD CONNECTOR

Overview

UPC 78358520052
Catalog Description CORDCON, STR ML, 1.00-1.13IN , 1 1/4IN , ALU
Codale Part No. 104390
Product Long Description Kellems Wire Management, Cord Connectors, Straight Male, 1.00-1.13", 1 1/4", Aluminum
Type Straight Male
Application Straight Male- Form 5
Material Aluminum, Cast
Temperature Rating Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
NEMA Rating NEMA Type 4, 4X, 12 and 13
Conductor Range 1-1.13 in (25.4- 28.6 mm)
Number of Wires / Conductors Single
Enviromental Conditions Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Hub Size 1-1/4"
Product Series Standard Duty
UNSPSC 39121431
Product Short Description Kellems Wire Management, Cord Connectors, Straight Male, 1.00-1.13", 1 1/4", Aluminum
MDM Item Long Description Kellems Wire Managem
MDM Pkg GTiN 00783585200521
Length 2.500 in
Finish Machined
Width 2.500 in
Size 1 1/4" NPT
Type Standard, Straight, Male, Form 5
Material Machined Aluminum
Number of Conductors 1
Conductor Size 1 - 1.13 in
Product Series Standard Duty
Applications Straight Male- Form 5
Cable Type Jacketed UL Listed Cable Only
Height 3.000 in
Temperature Rating -30 to 225 F
Family Brand Name Hubbell Wiring Devic
Tc Connection 1-1/4 in NPT
Sub Brand Kellems Wire Managem
