3M UY2(CART) 19-26 AWG Butt Connect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.23/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 1200 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # UY2(CART)
Codale Part # 121042

Overview

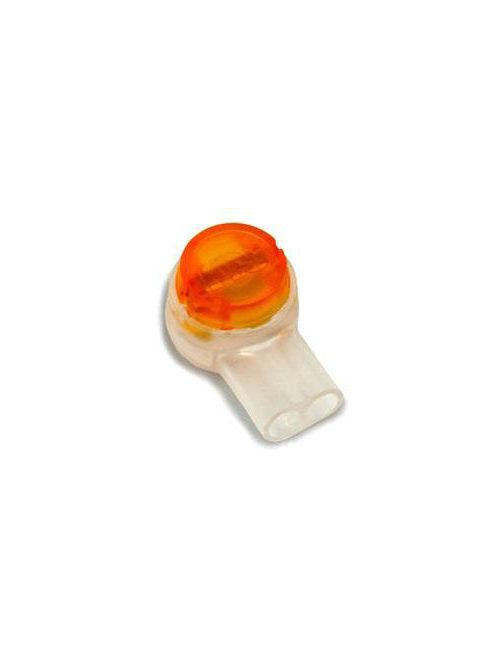

3M™ Scotchlok™ IDC Butt Connector UY2-D is a solvent-resistant connector which reduces the splicing bundle outer diameter to a minimum. It withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C).

3M™ Scotchlok™ IDC Butt Connector UY2-D is filled with a sealant which provides immense resistance to moisture. The corrosion-resistant connector is designed to accommodate 2 conductors of different wire gauges. This connector is designed for use on PIC cable where moisture resistance is not required.

  • Designed to accept 2 conductors
  • Moisture-resistant
  • 0.082-in O.D. insulation
  • Accommodates 26 to 19 AWG conductor sizes
  • Durable polypropylene construction
  • Comes in yellow color
  • Withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C)
  • 1,200 connectors (10 boxes of 10 cartridges with 12 connectors each)

Specifications

  • 3M ID: 80611327836
  • Brand: Scotchlok
  • Cable Type: PIC
  • Composition: Filled
  • Connector Type: Butt/2 Conductor
  • Family: Scotchlok
  • Flame Retardant: No
  • Insulation Outside Diameter: 0.082 Inch
  • Operating Temperature Range (Celsius): -40 °C to +60 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 140 °F
  • Packaging: 1,200 connectors (10 boxes of 10 cartridges with 12 connectors each)
  • Product Type: Connector
  • Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Wireless Network: Backhaul
  • Trademark: Scotchlok
  • Wire Gauge: 26 - 19 AWG

Overview

Codale Part No. 121042
Cable Type PIC
Connector Type Butt/2 Conductor
Wire Gauge 26 - 19 AWG
Product UPC 05111526225
Family Brand Name 3M
Product Type Connector
Wire Size 26-19 AWG
Connection Type Butt/2 Conductor
