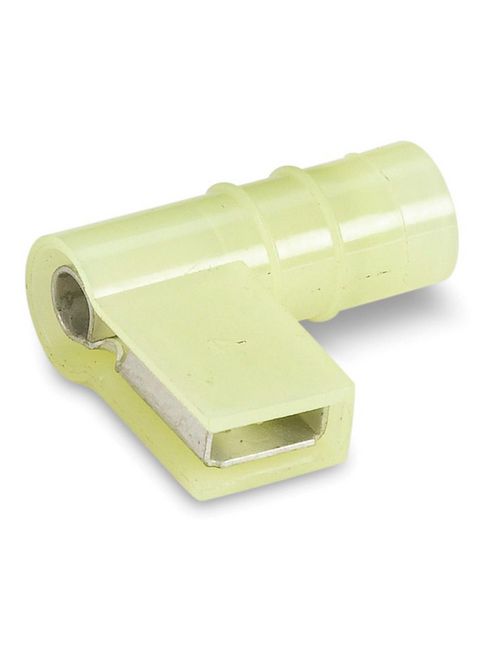

Thomas & Betts RC10-250A 12-10 AWG Yellow 250/RC Series Nylon Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$157.95/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Thomas & Betts
Mfg Catalog # RC10-250A
Codale Part # 10274

Features

  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

General

  • Disconnect Type: Female - 250 Series
  • Tab Size: .250 x .032
  • Finish: Electro Tin-Plated
  • Color: Yellow
  • Terminal Series: RC
  • Insulation Type: Insulated Nylon
  • Wire Range: 12-10
  • Material: Brass

Dimension Information

  • A (inches): .80
  • B (inches): .88
  • Maximum Insulation (inches): .250

Specifications

  • Flammability Rating: UL 94 V-2
  • Voltage Rating: 600V
  • Temperature Rating: 105°C

Tooling

  • Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
  • Recommended Tool: ERG4001

Packaging

  • Package Length: 12.1
  • Package Width: 10.5
  • T&B Sold in UOM: Each
  • Outer Package: 250
  • T&B Weight Per UOM: 6.88 lbs. per 1000
  • Package Type: Standard
  • Order Multiple: 50
  • Alternate Package Qty: RC2577F
  • Package Height: 7.9
  • Inner Package: 50

Application Support

Certifications


  • RoHS Compliance: Yes (exemption 06)
  • CSA
  • UL

Overview

Codale Part No. 10274
Product Long Description Insulated Nylon Female - 250 Series Disconnects For Wire Range 12-10 Length 0.8, Tab Size .250 x .032 , Yellow
Material Brass
Color Yellow
Voltage Rating 600V
Finish Electro Tin-Plated
Temperature Rating 105°C
Disconnect Type Female - 250 Series
Flammability Rating UL 94 V-2
Product UPC 78621089447
Length 0.8 Inch
Finish Electro-Tin Plated
Color Yellow
Voltage 600 Volt
Type Short Sleeve
Barrel Type Brazed Seam, Serrated
Insulation Type Nylon,Polyamide
Material Brass
Conductor Size 12-10 AWG
Temperature Rating 105 C
Family Brand Name Thomas & Betts
Insulation Material Nylon
Sub Brand Sta-Kon
