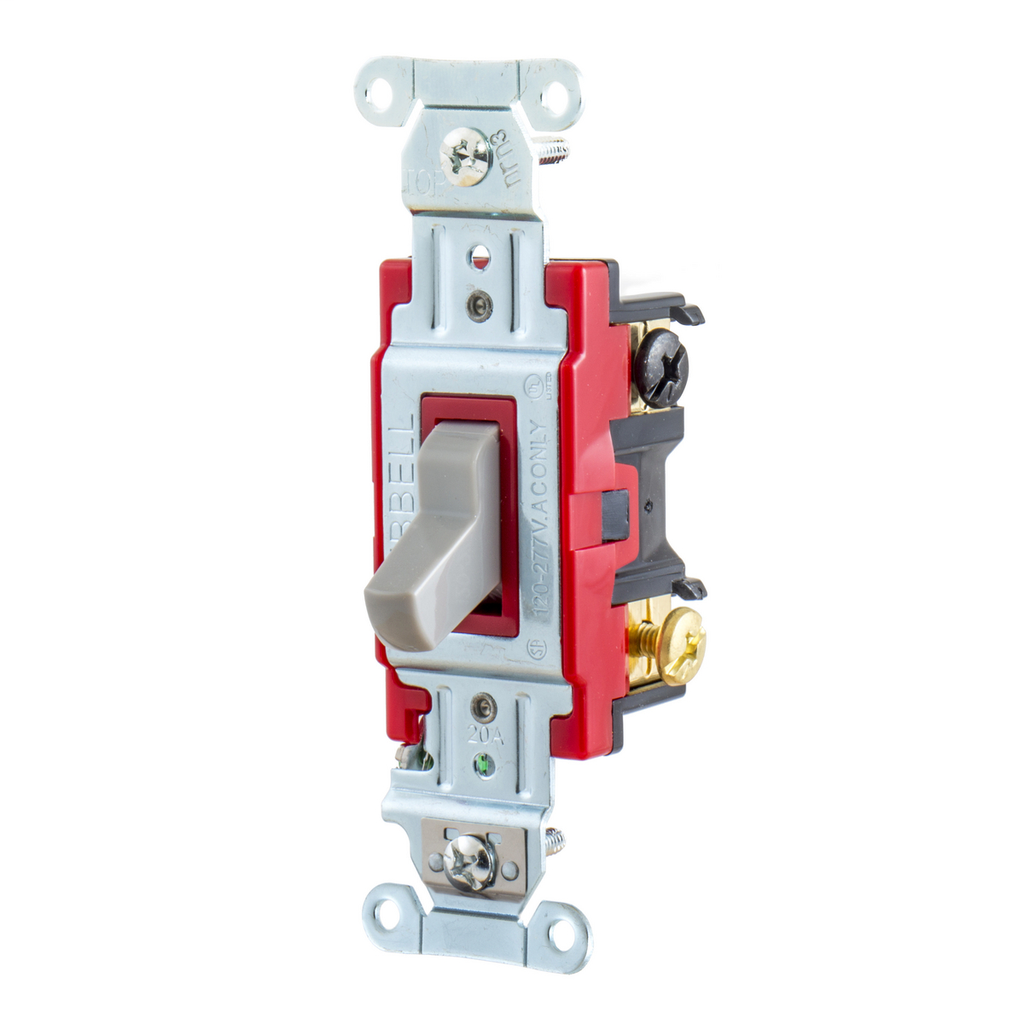

HUBBELL 1223GY 20A 120/277V 3WAY SELECT SPEC GRAY SWITCH
$5.89/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # 1223GY
Codale Part # 133425
HUBBELL 1223GY 20A 120/277V 3WAY SELECT SPEC GRAY SWITCH

Overview

UPC 78358518145
Catalog Description SWITCH, HUBPRO, 3-WAY, 20A 120/277V, GY
Codale Part No. 133425
Product Long Description Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired , Gray
Type Toggle
Application Back and Side Wired
Color Gray
Voltage Rating 120-277 VAC
Length 4.18 in
Amperage Rating 20 A
Width 1.49 in
Number of Poles Single Pole
Wire Size #14 AWG to #10 AWG
Height 1.83 in
Operating Temperature Maximum continuous 75°C and minimum -40°C without Impact
Action SPDT
Weight 0.2 lb
Style Three Way
Current Rating 20 A
Dielectric Strength Withstands 1500V AC minimum for 1 minute
Product Series Heavy Duty
UNSPSC 39122211
Product Short Description Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired , Gray
Size 4.18 in x 1.49 in x 1.83 in
MDM Item Long Description Hubbell Wiring Devic
MDM Pkg GTiN 00783585181455
Length 4.18 in
Width 1.910 in
Size Standard Sized
Color Gray
Operating Temperature Max Continuous- 75 D
Voltage 120-277 Volt
Type General Purpose, 2-Position, 3-Way, Standard, Heavy Duty
Product Series Heavy Duty
Applications Heavy Duty Industrial
Height 1.83 in
Grade Industrial
Weight 0.2 lb
Wattage 5,540 W
Family Brand Name Hubbell Wiring Devic
Tc Connection Back and Side Wired
Actuator Toggle
Contact Configuration Two Position
Current 20 A
Contact Rating Per UL 20
Number of Poles 1
Enclosure None
Operating Cycles 50000
Sub Brand AC Toggle Switches
