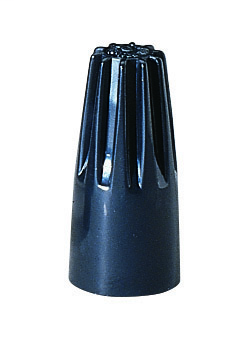

IDEAL 30-059 SIZE 59B BLACK WIRENUT
$261.99/m (1000 ea)
Usually ships within 6 to 8 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-059
Codale Part # 133295
IDEAL 30-059 SIZE 59B BLACK WIRENUT

Overview

UPC 78325030059
Product Description WIRENUT 59B BLK 100PC BX
Catalog Description IDEAL, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 22 - 12 AWG, Min 2 - 20, MAX 3-14, Color: Black, Material: THERMOPLASTIC POLYESTER, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150 DEG C (302 F), Model Number: 59B, Width: 31/64 IN, Height: 1-1/16 IN
Codale Part No. 133295
Product Long Description The connector that started it all, an American Classic.
Product Short Description High-Temp Wire-Nut® Wire Connector, Model 59B® Black, Box of 100
Item Long Description The connector that started it all, an American Classic.The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.
MDM Pkg GTiN 00783250300594
Color Black
Voltage 600 Volt
Type High Temperature
Material Thermoplastic Polyes
Number of Conductors 1,6
Conductor Size 22 - 12 AWG, 20 - 2
Applications Insulating or Joining 2 or More Conductors in Conditions Where Extreme Heat Buildup Occurs Such as High Wattage Fixtures and Signs
Standard CSA Certified To C22
Connection Type Twist-On
Temperature Rating 150 C
Family Brand Name Ideal
Enclosure Rating Tough,UL 94V-0 Flame
Environmental Conditions 150 C
Sub Brand Wire-Nut
MDM DDS PROP65 WARNING WARNING: Cancer -  www.P65Warnings.ca.gov.
MDM PRODUCT KEYWORD Wirenuts Wire Nuts Connectors
