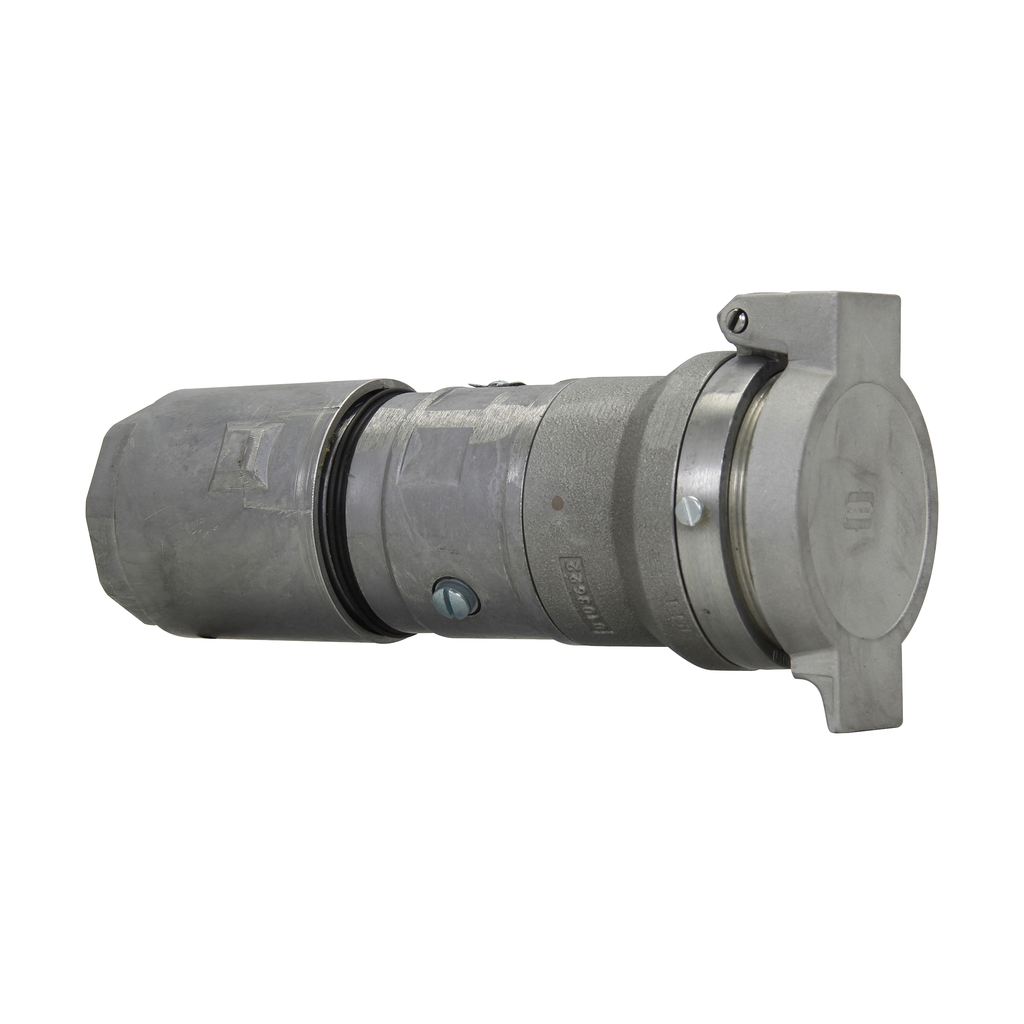

CROUSE-H APR3465 30AMP 600V 3W4P PIN AND SLEEVE FEMALE CONNECTOR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$856.95/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Eaton Crouse-Hinds
Mfg Catalog # APR3465
Codale Part # 12747
CROUSE-H APR3465 30AMP 600V 3W4P PIN AND SLEEVE FEMALE CONNECTOR

Overview

UPC 78227405480
Product Description 30A 3W4P PIN AND SLEEVE FEMALE CONNECTOR
Catalog Description 30 AMP 3 WIRE 4 POLE ARKTITE CABLE CONNECT RECEPTACLE .87 TO 1.02
Codale Part No. 12747
Material Copper-free aluminum
Voltage Rating 600 Vac, 250 Vdc
Length 8.25 IN
Amperage Rating 30A
Width 2.5625 IN
Height 2.5625 IN
Weight 2.3 LB
Cable Diameter 0.39-1.20"
Product Short Description Eaton's Crouse-Hinds series Arktite APR Connector
Item Long Description Eaton Crouse-Hinds series Arktite APR connector, 30A, 0.39-1.20", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
MDM Pkg GTiN 00782274054803
Length 8-1/4 in
Width 2.562 in
Size 8-1/4 In Length X 2-9/16 In Height
Voltage 250 Volt
Type Grounding Style 2, Watertight
Material Copper-Free Aluminum
Applications For Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Conveyors, Lighting System, Indoor/Outdoor
Height 2.56 in
Weight 2.3 lb
Wire Size 10-6 AWG (Building),
Standard UL 1682,UL 1686,CE,C
Frequency 50-400 Hz
Connection Type Pressure, Crimp/Sold
Family Brand Name Crouse-Hinds Series
Tc Connection Pressure, Crimp/Sold
Amperage 30 Amp
Number of Poles 4 Pole
Sub Brand Arktite
Diameter 0.39 - 1.2 in
Number of Conductors 3
Conductor Size 10-6 AWG (Building),
Number of Ports 4
