Manufacturer | Eaton Bussmann |
---|---|
Mfg Catalog # | FRN-R-250 |
Codale Part # | 44464 |
UPC | 05171250750 |

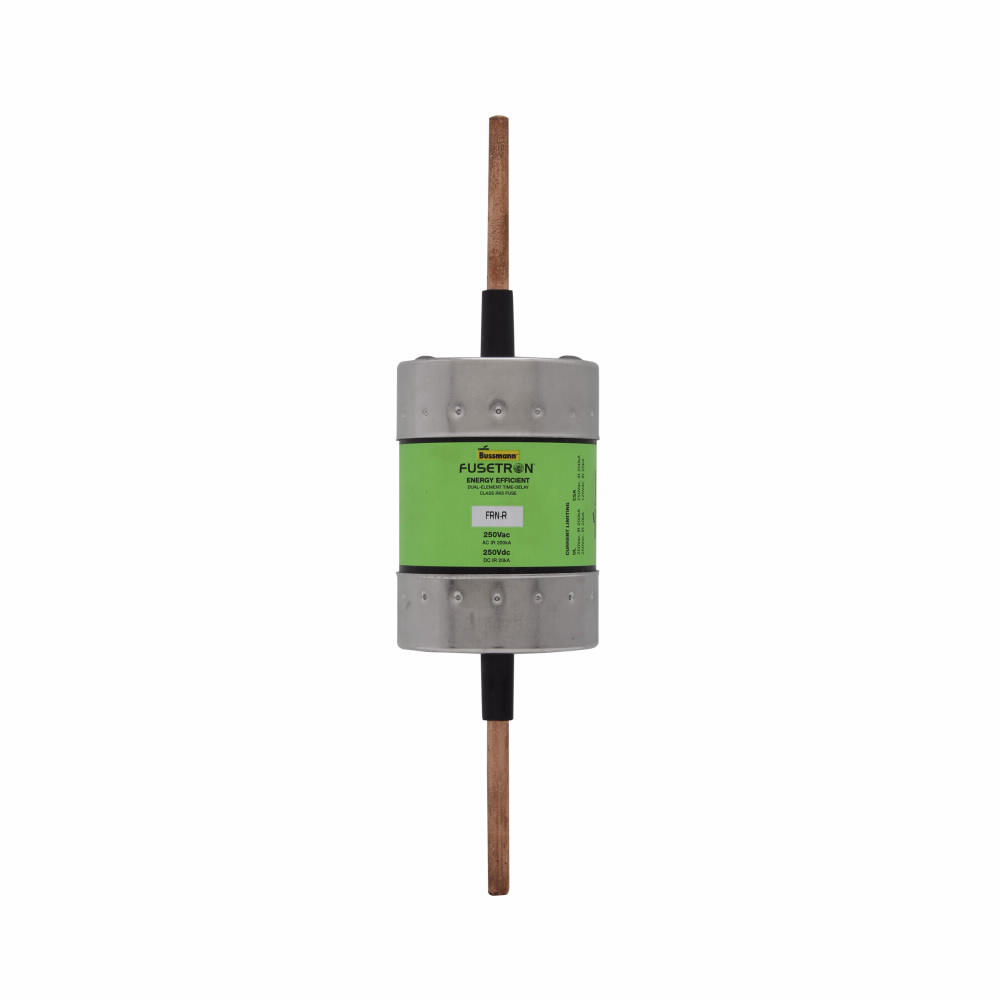

Product Description | DUAL-ELEMENT, FRN-R, CLASS RK5, 250 AMP |
Catalog Description | FUSETRON DUAL-ELEMENT CLASS RK5 |
Item Long Description | Eaton Bussmann series FRN-R fuse, 250 Vac, 125 Vdc, 250A, 200 kAIC at 250 Vac, 20 kAIC at 125 Vdc, Non Indicating, Current-limiting, time delay, Blade end X blade end, Class RK5 |
MDM Pkg GTiN | 00051712507509 |
Length | .5 in |
Width | .81 in |
Size | 2.38 In Diameter X 8.63 In Length |
Voltage | 250 Volt |
Type | Current Limiting,Time Delay |
Diameter | 2.38 in |
Applications | Ind Facilities & Factories - Facility: Safety and Security Systems |
Height | 1 in |
Weight | .896 lb |
Standard | CE,CSA C22.2,UL 248- |
Connection Type | Blade |
Family Brand Name | Bussmann Series |
Class | RK5 |
Tc Connection | Blade end X blade en |
Amperage | 250 Amp |
Response Time | 10 seconds at 500% |
End Type | Blade |
Interrupt Rating | 20 kA |
Element | Dual |
Sub Brand | Bussmann Series |
Blade Dimensions | 0.5000 IN X 1.0000 I |
MDM PRODUCT KEYWORD | FLNR250, FLNR250ID, TR250R |
