BUR YA2CL4BOX 2STR CU 1-HOLE SHORT
Product image thumbnail 0
Product image thumbnail 1
$5.39/ea
Usually ships within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell-Burndy
Mfg Catalog # YA2CL4BOX
Codale Part # 134554

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Die Index: 10, Finish: Electro-Tin Plated, Wire Strip Length: 15/16 IN, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Package: Box, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W2CVT, W2CRT, X2CRT Die, (1), Hydraulic: BCT500HS, Y500CTHS Tool, W2CVT, W2CRT, X2CRT Die, (1), Y35, Y39, Y750, PAT750 Tool, U2CRT Die, (1), Y46 Tool, U2CRT Die With PUADP-1 Adapter, (1), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (1), Y1MRTC Tool, (2)

Specifications

  • Conductor - Copper Str Navy Size: 60 (37) Navy
  • Conductor - Copper Str Navy Size Range: 60 (37) Navy
  • Conductor - Copper Str Size: 2 AWG
  • Conductor - Copper Str Size Range: 2 AWG
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length inch: 0.88 in
  • Dimension - Bolt Hole Size inch: 0.39 in
  • Dimension - D inch: 0.83 in
  • Dimension - Hole Size inch: 0.40 in
  • Dimension - Hole Size mm: 10 mm
  • Dimension - L Length Overall mm: 52 mm
  • Dimension - Length Overall inch: 2.06 in
  • Dimension - N inch: 0.41 in
  • Dimension - Outside Diameter inch: 0.42 in
  • Dimension - Pad Width inch: 0.61 in
  • Dimension - Strip Length inch: 15/16
  • Dimension - Stud Size fraction: 3/8
  • Dimension - Stud Size inch: 3/8
  • Dimension - Z inch: 0.42 in
  • Each - Height: 0.42 in
  • Each - Length: 2.06 in
  • Each - Width: 0.61 in
  • Feature - Barrel Style: Chamfered;Skived
  • Feature - Barrel Type: Standard
  • Physical Attribute - Number of Holes: 1
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin - Electro Plated
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Sub Brand: HYLUG
  • IGS 3D Model Asset Reference URL 3: https://hubbellcdn.com/igs/YA2CL4BOX_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YA2CL4BOX_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 1: https://hubbellcdn.com/step3dfile/YA2CL4BOX_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

Codale Part No. 134554

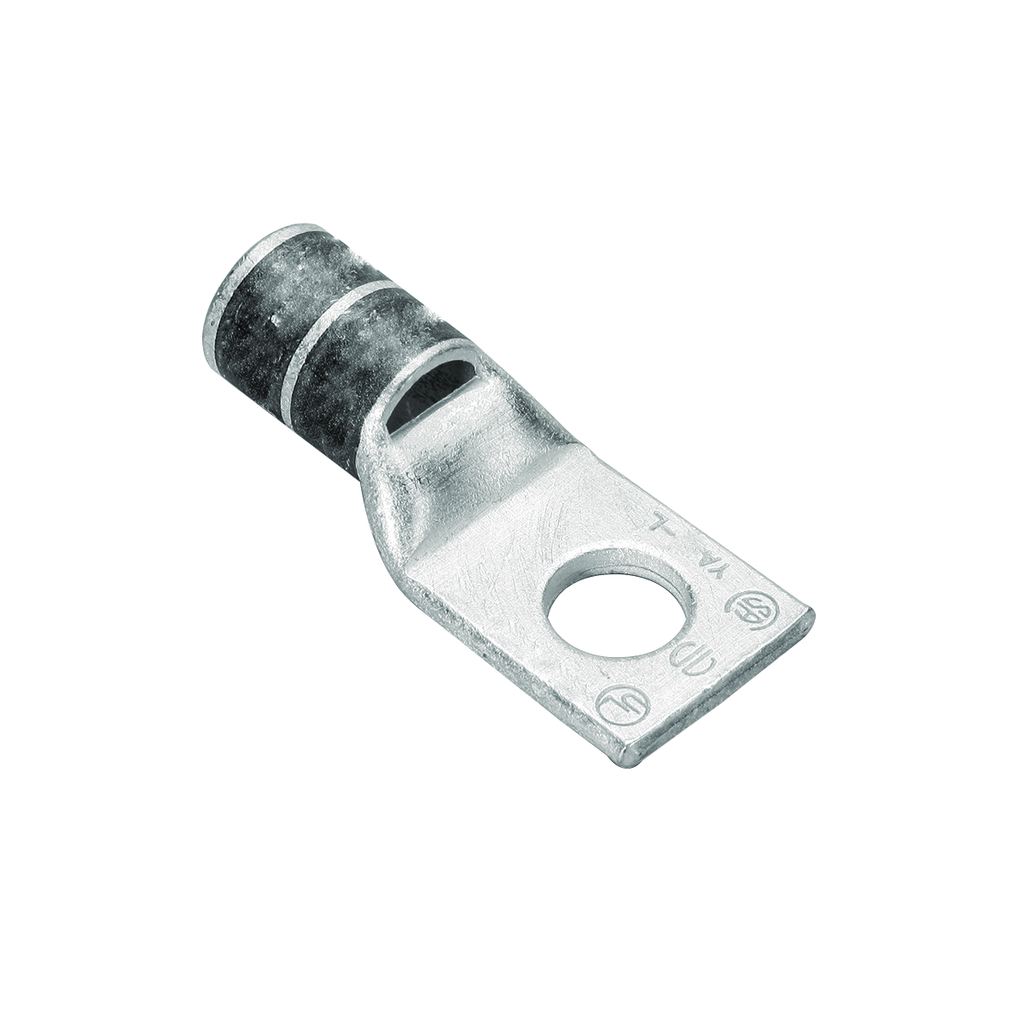

Product Long Description Copper Compression lug, 1 Hole w/ Inspection Window, 2 AWG, 3/8" Stud, Short Barrel, Tin Plated.
Type Standard Barrel, Tin Plated
Sub Brand HYLUG
Application For Code Conductor
Material Copper
Temperature Rating 194
Connector Type Terminal
Color Code Brown
Product UPC 78181055200
Type Standard Barrel, Tin Plated
Material Copper
Stud Size 0.375 in
Number of Holes 1 Hole
Applications For Code Conductor
Cable Size 2 AWG, 35 SQ-MM For Class 2 Conductor
Family Brand Name Burndy
Sub Brand HYLUG
Length 2.06 Inch
Hole Size 10 mm
Conductor Size 2 AWG
Connection Type Terminal
Plating Type Tin - Electro Plated
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
Width 0.61 in
Height 0.42 Inch
Country of Origin USA
Overall Length 2.06 in
