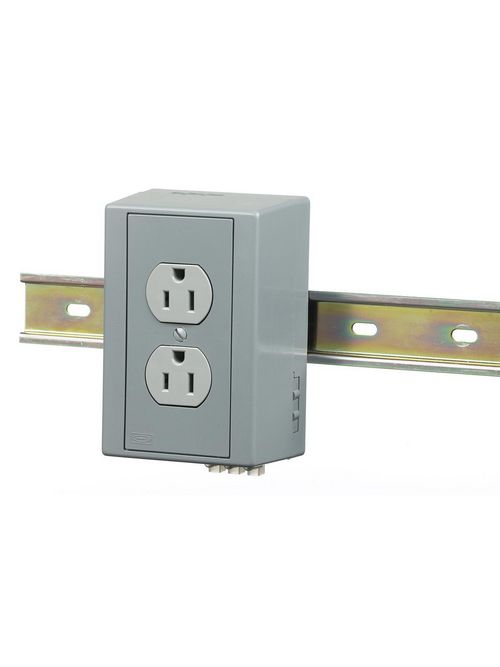

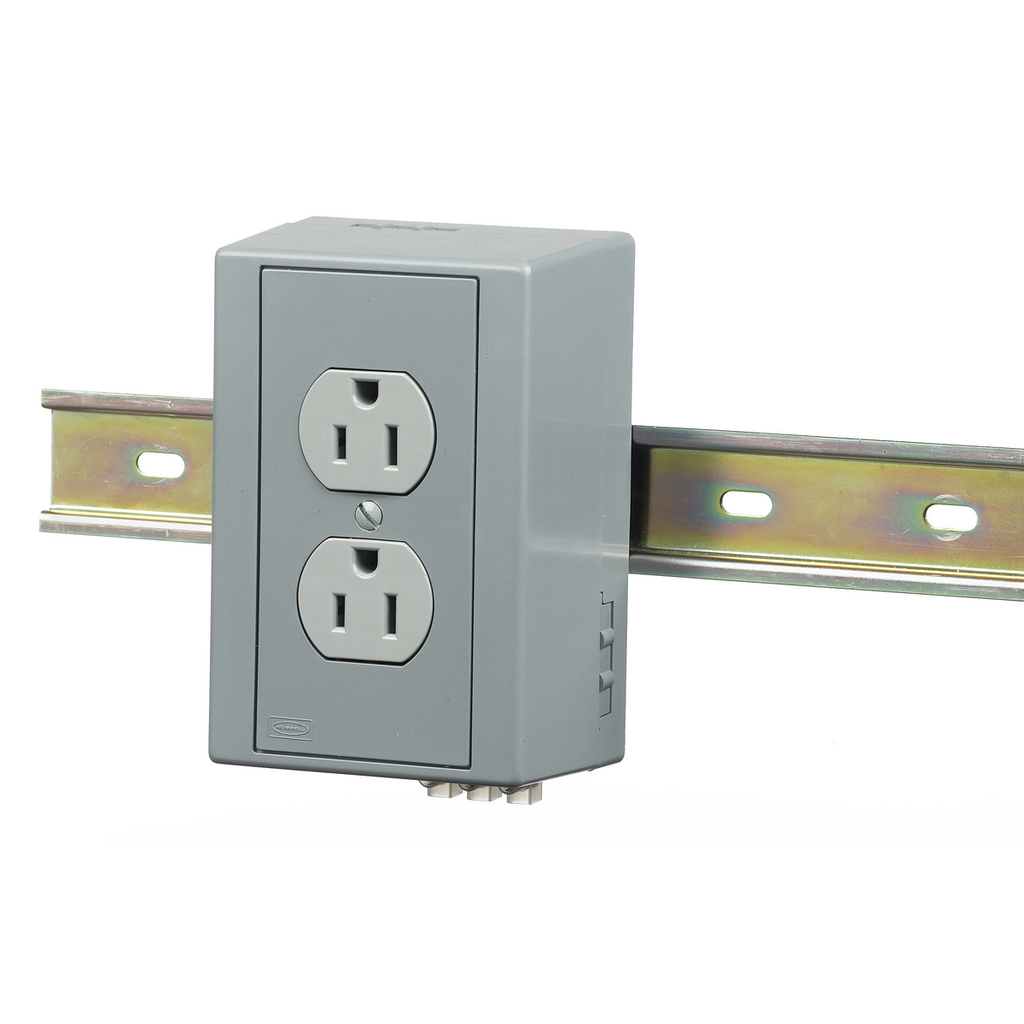

Hubbell Wiring Devices DRUB15 15 Amp 125 Volt NEMA 5-15R Gray Din Rail Utility Box Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$48.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # DRUB15
Codale Part # 493933

Features

  • It provide utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired "kits" are available for end-user customization
  • 15A 125V, 2-Pole 3-Wire Grounding

Specifications

  • Country of Origin: US
  • Current / Amperage Rating: 15 A
  • Dimensions: 5.62 in x 3.31 in x 2.54 in
  • Each - Height: 4.048 in
  • Each - Length: 5.168 in
  • Each - Width: 5.168 in
  • Height: 2.54 in
  • Horsepower - Maximum: 0.5
  • Industry Standard(s): UL Listed, Certified to CSA
  • Show Add To ProjectList: Yes
  • Application: Unit Pre-Wired with Duplex Receptacle
  • Cable Entry: Terminals
  • Color: Gray
  • Knockouts: None
  • Length: 5.62 in
  • Size: 5.62 in x 3.31 in x 2.54 in
  • Special Features: 15A 125V, 2-Pole 3-Wire Grounding
  • Standard: UL Listed, Certified to CSA
  • Type: Box and Device
  • Width: 3.31 in
  • Voltage Rating: 125 V
  • Voltage Rating Description: 125 V

Certifications

  • EU RoHS Indicator: Yes

Overview

UPC 78358510800
Codale Part No. 493933
Product Long Description DIN Rail Utility Box, Complete Unit- Duplex Receptacle, 1) 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Gray.
Type Box and Device
Application Unit Pre-Wired with Duplex Receptacle
Color Gray
Voltage Rating 125 V
Length 5.62 in
Amperage Rating 15 A
Width 3.31 in
Number of Poles 2-Pole
Wire Size #14 AWG to #12 AWG
Height 2.54 in
Construction Molded and Fabricated
NEMA Rating 5-15R
Dimensions 5.62 in x 3.31 in x 2.54 in
Number of Wires / Conductors 3-Wire
Knockouts None
Cable Entry Terminals
Weight 1 lb
Current Rating 15 A
Dielectric Strength Withstands 2,000V minimum
UNSPSC 39121303
Size 5.62 in x 3.31 in x 2.54 in
Item Long Description DIN Rail Utility Box, Complete Unit- Duplex Receptacle, 1) 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Gray.
Length 5.62 in
Width 3.31 in
Size 5.62 in x 3.31 in x 2.54 in
Color Gray
Voltage 125 Volt
Type Complete Unit, 2-Pole, 3-Wire, 1-Device
Material Composite
Applications Unit Pre-Wired with Duplex Receptacle
Mounting Type Vertical
Depth 64.5 mm
Height 2.54 in
Weight 1 lb
Family Brand Name Hubbell Wiring Device Kellems
Construction Molded and Fabricated
Current 15 A
Number of Poles 2 Pole
Number of Wires 3
Cable Entry Terminals
Used With Duplex Receptacle
Sub Brand DIN Rail Utility Box
Standard CSA,UL
