Manufacturer | Hubbell Wiring Device-Kellems |
---|---|
Mfg Catalog # | HBLAC1 |
Codale Part # | 451569 |
UPC | 78358595511 |

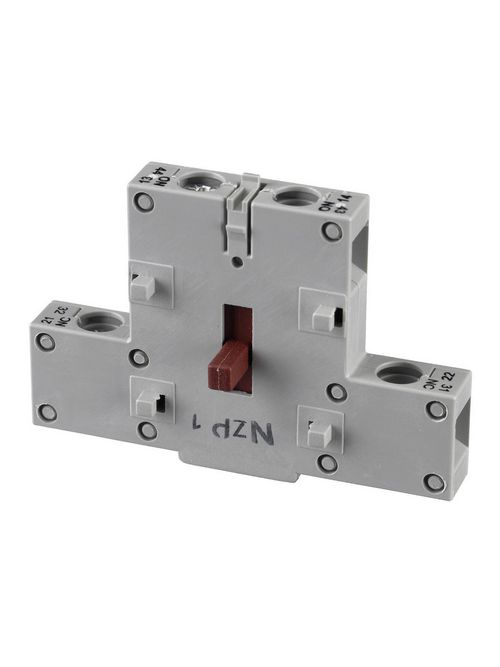

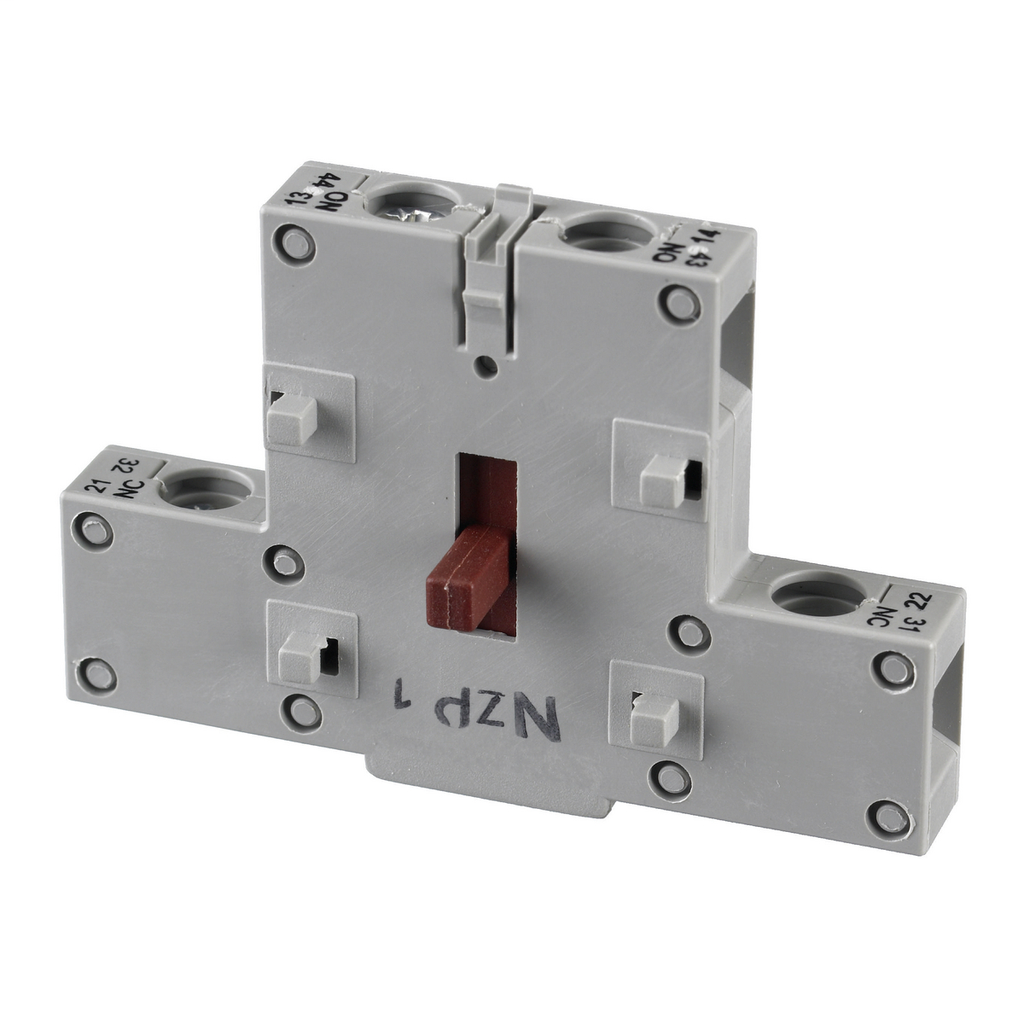

Catalog Description | AUX CONTACT, BREAK AFTER BREAK |
Codale Part No. | 451569 |
Product Long Description | Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Break after Main Break Auxiliary Contact, For 30A and 60A and 100A Pilot Duty. |
Type | Accessories |
Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Weight | 0.1 lb |
Style | Auxiliary Contacts |
Dielectric Strength | Withstands 3,000V minimum |
Product Series | Non-Fused |
UNSPSC | 39122205 |
Product Short Description | Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Break after Main Break Auxiliary Contact, For 30A and 60A and 100A Pilot Duty. |
Item Long Description | Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Break after Main Break Auxiliary Contact, For 30A and 60A and 100A Pilot Duty. |
MDM Pkg GTiN | 00783585955117 |
Length | 4.160 in |
Width | 1.790 in |
Size | Standard Sized |
Operating Temperature | Max Continuous- 67 D |
Type | Break Before Break, Standard |
Product Series | Fused,Non |
Applications | For HBLDS Series |
Mounting Type | Front |
Height | 1.540 in |
Weight | 0.1 lb |
Connection Type | Screw |
Wattage | 2500 Watt |
Temperature Rating | -67 C Maximum Conti |
Family Brand Name | Hubbell Wiring Devic |
Housing Material | Composite |
Tc Connection | Terminal Screws |
Contact Configuration | 2 NO, 2 NC |
Environmental Conditions | Indoor Dry Unless Pr |
Contact Rating | 10A |
Number of Poles | 3 Pole |
Load Rating | 2500 W |
Used With | HBLDS Series Disconnect Switches |
Sub Brand | Circuit-Lock |
Voltage | 250 Volt |
Standard | 12K Enclosure Rating |
