Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer Hubbell Wiring Device-Kellems
Mfg Catalog # PDB12D
Codale Part # 451943


  • Reduces inventory requirements
  • Eliminates need to order three separate boxes
  • Boxes available in low, standard and deep profiles


  • Color: Office White
  • Country of Origin: US
  • Each - Height: 2.500 in
  • Each - Length: 11.000 in
  • Each - Width: 8.000 in
  • Industry Standard(s): CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
  • Performance: Environmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
  • Show Add To ProjectList: Yes
  • Standard: CSA Standard C22.2 no. 62; E118895 / E119190; UL Standard UL 5A
  • Type: Boxes


  • EU RoHS Indicator: Contact Manufacturer


UPC 78358509037
Codale Part No. 451943
Product Long Description 1 Gang Deep Box
Material UV Stabilized PVC
Temperature Range -25.6 to 158 Degrees F
Type Boxes
Color Office White
Style Deep
Product Series PP1;PL1;PW2

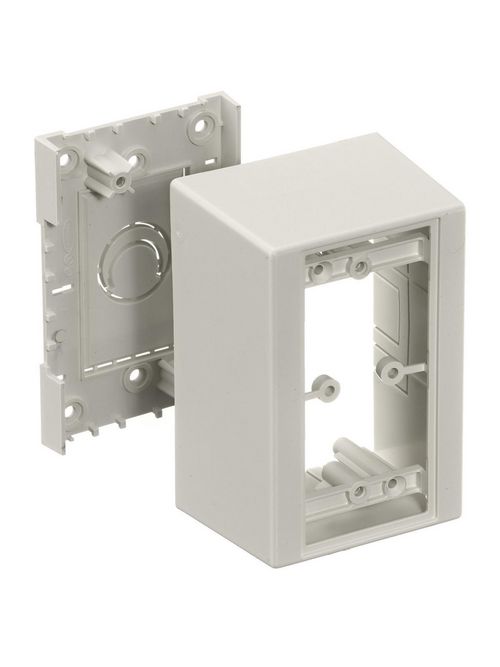

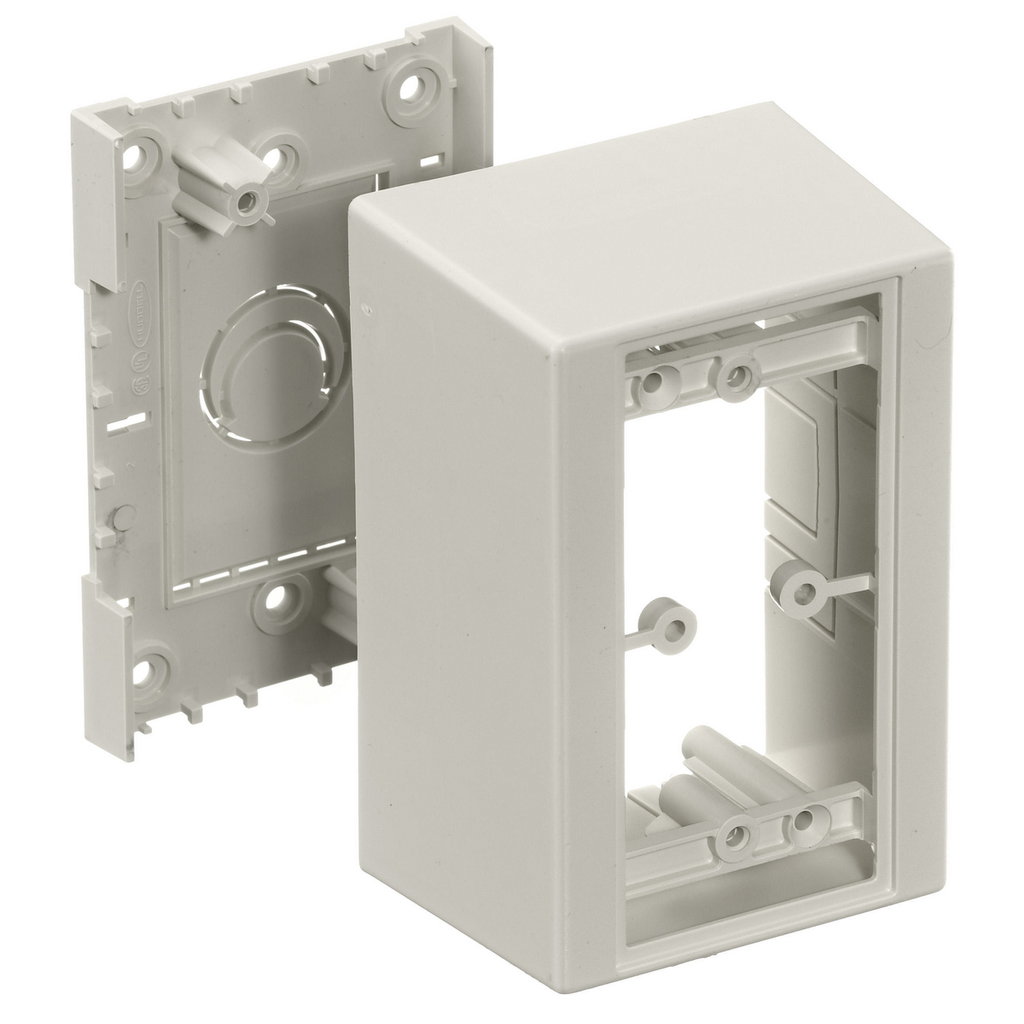

Item Long Description Non-Metallic Raceway, PolyTrak Series, PolyTrak Box, 1-Gang, 2.44" Deep
Length 2.44 in
Finish Office White
Width 3-1/4 in
Color White
Type Non-Hazardous, Extruded, Rectangular, Deep
Material Plastic
Product Series PP1,PL1,PW2
Applications 1-Gang Deep Box
Depth 4.9 in
Height 4.9 in
Temperature Rating -25.6 to 158 C
Family Brand Name Hubbell Wiring Device Kellems
Construction Extruded
Number of Gangs 1 Gang
Enclosure NEMA 1 Rating
Used With PW2 WallTrak, PL1 LANTrak and PP1 PremiseTrak (Latching) Series Non-Metallic Raceway
Sub Brand Non-Metallic Raceway Products
Standard CSA Standard C22.2 No. 62,E118895,E119190,UL Standard UL 5A
