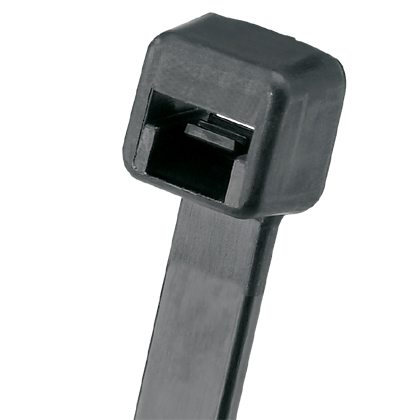

Panduit PLT2M-C0 8.0 Inch 203 mm Miniature Weather Resistant Nylon Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$17.37/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PLT2M-C0
Codale Part # 119552

Specifications

  • Product Segment: IEI
  • Product Type: Cable Ties
  • Color: Black
  • Environment: Indoor/Outdoor
  • Sub Brand: Pan-Ty®
  • For Use With: GTS-E, GS2B-E, PTS, PPTS, STS2
  • Material: Weather Resistant Nylon 6.6
  • Resistance Properties: UV Resistant
  • Maximum Bundle Diameter (In.): 2
  • Maximum Bundle Diameter (mm): 51
  • Maximum Installation Temperature (°F): 32
  • Maximum Operating Temperature (°C): 85
  • Maximum Operating Temperature (°F): 185
  • Minimum Bundle Diameter (In.): 0.06
  • Minimum Bundle Diameter (mm): 1.5
  • Minimum Installation Temperature (°C): -20
  • Minimum Installation Temperature (°F): -4
  • Minimum Loop Tensile Strength (N): 80
  • Minimum Loop Tensile Strength (lb): 18
  • Minimum Operating Temperature (°C): -60
  • Minimum Operating Temperature (°F): -76
  • Overall Length (In.): 8
  • Overall Length (mm): 203
  • Body Width (In.): 0.098
  • Body Width (mm): 2.5
  • Body Thickness (In.): 0.043
  • Body Thickness (mm): 1.1
  • Standards Met: CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint

Packaging Details

  • UPC: 07498354076
  • GTIN Package: 00074983540761
  • Standard Package Volume Ft3: 0.0321
  • Standard Package Weight Pounds: 0.2000
  • Std Package Height In: .9
  • Std Package Height MM: 22.86
  • Std Package Length In: 9.25
  • Std Package Length MM: 234.95
  • Std Package Width In: 3.85
  • Std Package Width MM: 97.79
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983540766
  • Standard Carton Volume Ft3: 0.0321
  • Standard Carton Weight Pounds: 2.0000
  • Std Carton Height In: 5.9
  • Std Carton Height MM: 149.86
  • Std Carton Length In: 10.5
  • Std Carton Length MM: 234.95
  • Std Carton Width In: 8.1
  • Std Carton Width MM: 205.74
  • Std Ctn Qty: 1000
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: SG
  • RoHS Compliant: Compliant
  • EAN: 00074983540761
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 1,000
  • Pallet Quantity: 168,000
  • Pallet Volume: 53.880653
  • Pallet Weight: 336.0000

Overview

Codale Part No. 119552
Product Long Description Cable Tie, 8.0 Inches (203 mm) Length, Miniature, 18 Pounds Minimum Loop Tensile Strength, Weather Resistant Nylon 6.6, Black. Material Flammability Rating of V-2. Weather Resistant for greater resistance to damage caused by ultraviolet light. Indoor or outdoor use. One-piece construction for consistent performance and reliability. Low thread force. Curved tip is easy to pick up from flat surfaces and allows faster initial threading.
Material Nylon 6.6
Color Black
For Use With GTS, GTSL, GS2B, PTS, PPTS, STS2
Product UPC 07498354076
Width 6.1 mm
Color Black
Type Cable Ties
Thickness 1.3 mm
Material Nylon
Applications General
Country of Origin SG
Pkg Qty 100
Family Brand Name Panduit
Max Operating Temperature 185 degrees F
Overall Length 8 in
Min Operating Temperature -76 degrees F
Tensile Strength 80 lb
Bundle Diameter 50.8 mm
Sub Brand Pan-Ty
MDM DDS PROP65 WARNING No
