UPC | 66246807971 |
Catalog Description | Plug-In Oiltight Limit Switch,Metal,10 A Standard Energy,Top Push Rod,2 Circuits,Conduit Entry,Standard Contacts,1 Normally Open Contact,1 Normally Closed Contact,Standard Low Temprature, -18°C,110 °C High Temp Limit,Snap Acting,1/2" NPT Thread,Push Accuation,Spring Return,Full Switch (Head & Body),NEMA Style Standard Mounting,Not Direct Acting,802T Plug-in Style,3.1 lb in,1.4 mm,0.7 mm,A600,216 |
Codale Part No. | 127943 |
Product Long Description | Plug-In Oiltight Limit Switch, Metal, 10 A Standard Energy, Top Push Rod, 2 Circuits, Conduit Entry, Standard Contacts, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, -18°C, 110 °C High Temp Limit, Snap Acting, 1/2" NPT Thread, Push Accuation, Spring Return, Full Switch (Head & Body), NEMA Style Standard Mounting, Not Direct Acting, 802T Plug-in Style, 3.1 lb in, 1.4 mm, 0.7 mm, A600, 216 |
Type | Oiltight Limit Switches |
Product Short Description | Limit Switch, NEMA Type 4 and 13 Oiltight Construction, Plug-In, Top Push Rod, 2-Circuit, Whole Switch |

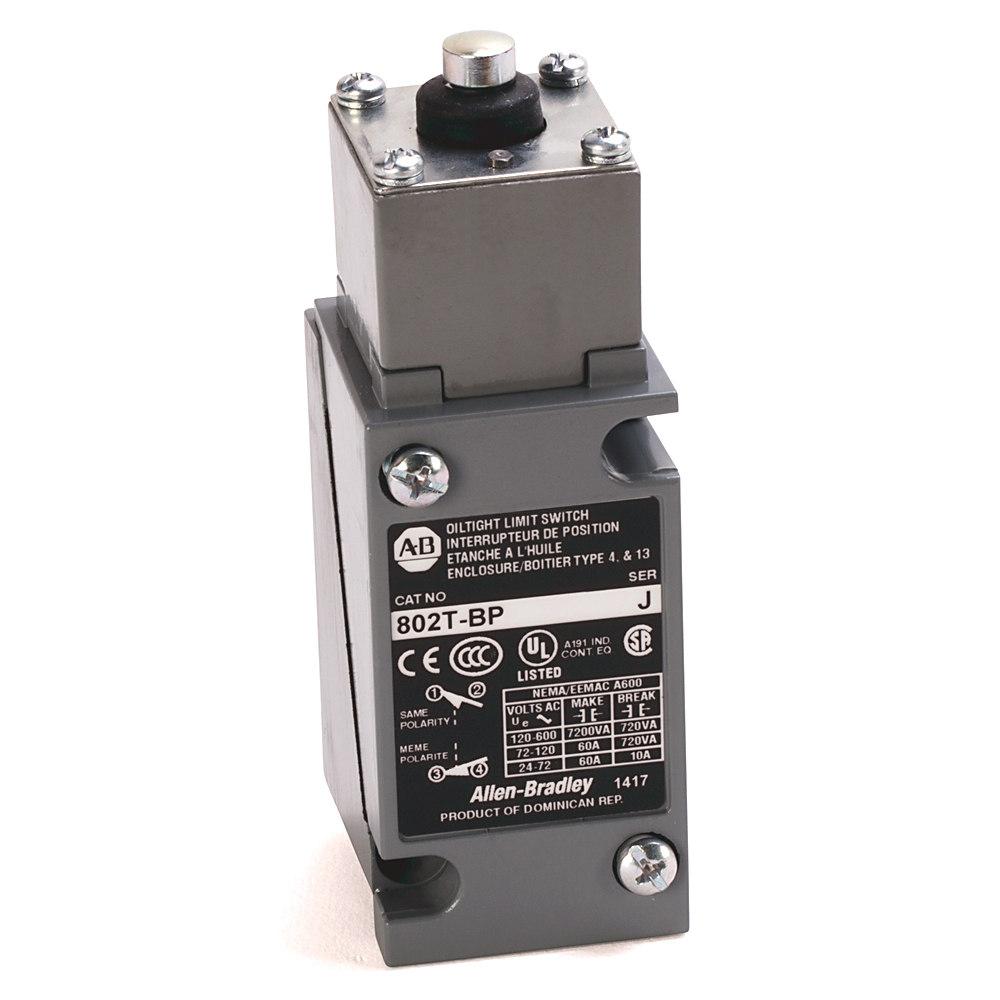

Item Long Description | Metal Plug-In Oiltight Limit Switch |
MDM Pkg GTiN | 00662468079716 |
Size | 802T Plug-in Style |
Operating Temperature | -18 C |
Type | Oiltight |
Material | Metal |
Applications | Full Switch (Head & Body) |
Mounting Type | Standard |
Connection Type | Plug-In |
Temperature Rating | -18 to 110 C |
Family Brand Name | Allen Bradley |
Tc Connection | Conduit Entry |
Actuator | Top Push Rod |
Contact Configuration | 1 NO, 1 NC |
Blade Dimensions | 41.28 mm L x 42.85 m |
Number of Circuits | 2 |
Contact Rating | A600 |
Number of Poles | 1 Pole |
Enclosure | Metal |
Action | Snap |
Standard | CCC,CE,CSA,KC,UL |
