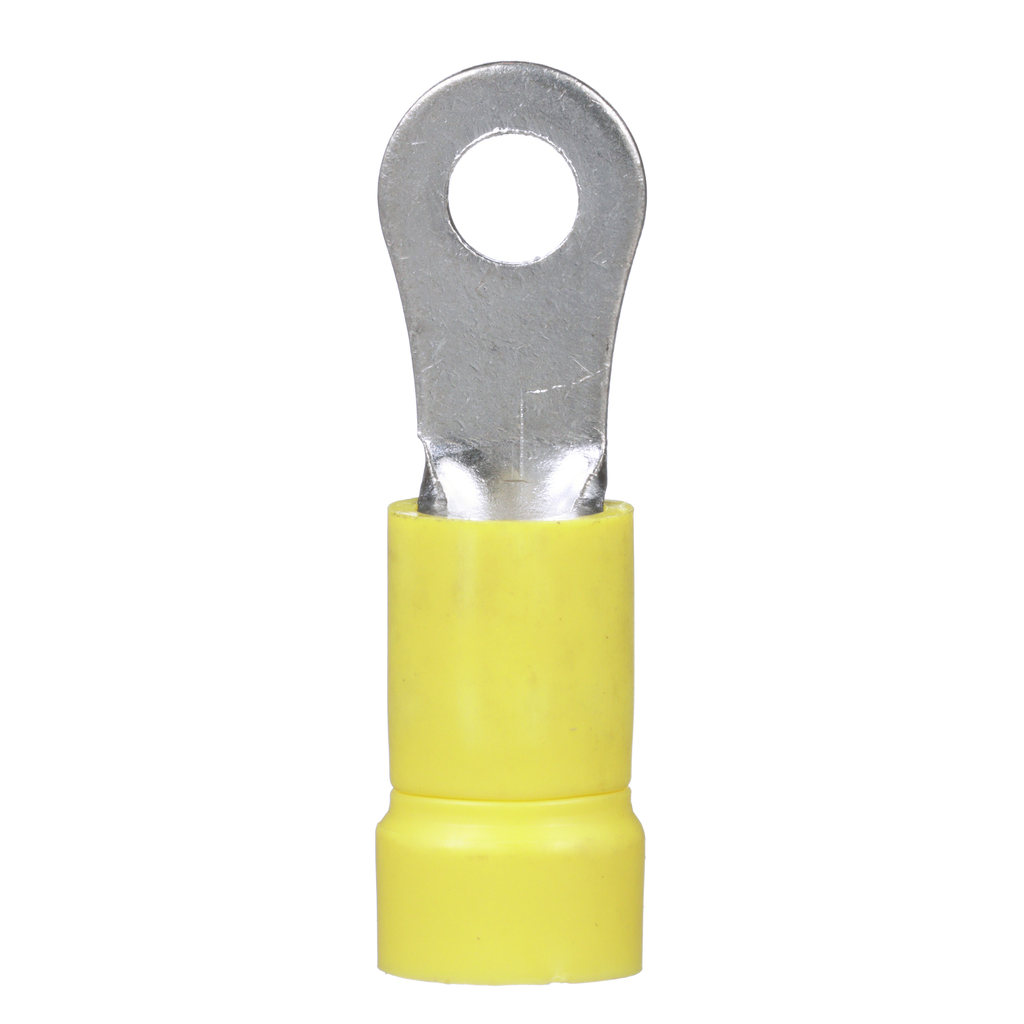

PANDUIT PV10-6R-L RING TERMINAL
$67.99/c (100 ea)
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV10-6R-L
Codale Part # 115190
PANDUIT PV10-6R-L RING TERMINAL

Categories

Overview

UPC 07498380128
Product Description RING TERMINAL, VINYL INSULATED, 12 - 10AWG
Catalog Description Ring Terminal, 12 10 AWG, #6 stud size, vinyl insulated, funnel entry, standard package.
Codale Part No. 115190
Product Long Description Ring Terminal, Vinyl Insulated, 12 - 10 American Wire Gauge (AWG), No. 6 Stud Size, Funnel Entry. Insulation support helps to prevent wire damage in bending applications. Ring tongue design assures a secure connection in high vibration applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up 600 Volts per UL 486A/B. Standard Package.
Sub Brand Pan-Term
For Use With CT-100, CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
Barrel Type Funnel Entry
Color Code Yellow
Flammability Rating UL 94 V-0
Packaging Type Bottle
Product Short Description Ring Terminal, 12 10 AWG, #6 stud size, vinyl insulated, funnel entry, standard package.
Item Long Description Ring Terminal, Vinyl Insulated, 12 - 10 American Wire Gauge (AWG), No. 6 Stud Size, Funnel Entry. Insulation support helps to prevent wire damage in bending applications. Ring tongue design assures a secure connection in high vibration applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up 600 Volts per UL 486A/B. Standard Package.
MDM Pkg GTiN 00074983801282
Finish Tin Plated
Width 7.9 mm
Size M3.5
Color Yellow
Type Ring Terminal, Vinyl Insulated-Funnel Entry
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 12-10 AWG
Temperature Rating 221 F
Pkg Qty 50
Family Brand Name Panduit
Tc Connection Funnel Entry
Max Operating Temperature 167 degrees F
Overall Length 1.05 in
Barrel Length 0.53 in
Color Coding Yellow
Enclosure Ring shape
Sub Brand Pan-Term
MDM DDS PROP65 WARNING No
Voltage null
Stud Size #6
Conductor Size 12-10 AWG
Insulation Material PVC
UNSPSC 39121409
