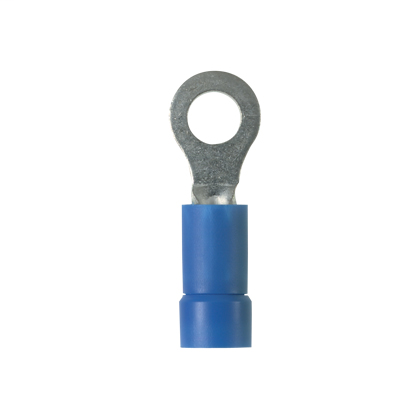

Panduit PV14-56R-C 16-14 AWG Vinyl Insulated Ring Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$72.99/c (100 ea)
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # PV14-56R-C
Codale Part # 115182

Specifications

  • Product Segment: IEI
  • UNSPSC: 39121409
  • Stud Size: 5/16"
  • Stud Hole Size (In.): 17/50
  • Stud Hole Size (mm): 8.6
  • Insulation Material: Vinyl
  • Minimum Wire Size (AWG): #16
  • Maximum Copper Conductor Size (AWG STR): #14
  • Maximum Copper Conductor Size (AWG): #14
  • Maximum Wire Size (AWG): #14
  • Maximum Copper Conductor Size (AWG SOL): #14
  • Minimum Copper Conductor Size (AWG STR): #16
  • Minimum Copper Conductor Size (AWG SOL): #16
  • Minimum Copper Conductor Size (AWG): #16
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Metric Conductor Size (mm²): 2.5
  • Wire Strip Length (mm): 7.9
  • Wire Strip Length (In.): 0.31
  • Standards Met: UL Listed, UL 486A, UL 486B; CSA Certified C22.2 No. 65
  • Maximum Voltage (kV): 0.6
  • Base Material: Copper
  • Maximum Voltage (V): 600
  • Finish/Coating: Tin-Plated
  • Color Code: Blue
  • Barrel Type: Funnel
  • Barrel Length (In.): 0.56
  • Barrel Length (mm): 14.2
  • Flammability Rating: UL 94 V-0
  • Insulation Diameter (In.): 0.17
  • Insulation Diameter (mm): 4.3
  • Maximum Operating Temperature (°C): 105
  • Maximum Operating Temperature (°F): 221
  • Maximum Wire Insulation Diameter (mm): 4.3
  • Maximum Wire Insulation Diameter (In.): 0.17
  • Sub Brand: Pan-Term
  • Overall Length (In.): 1.12
  • Overall Length (mm): 28.4
  • Overall Width (In.): 0.46
  • Overall Width (mm): 11.7
  • Tongue Length (mm): 14.2
  • Tongue Length (In.): 0.56
  • Tongue Thickness (mm): 0.8
  • Tongue Thickness (In.): 0.03
  • Tongue Width (In.): 0.46
  • Tongue Width (mm): 11.7
  • Packaging Type: Bottle
  • Product Type: Loose Piece
  • For Use With: CT-100A, CT-600-A (CT-550CH) CT-1550, CT-1551, CT-2500(CT-2550CH)

Packaging Details

  • UPC: 07498380124
  • GTIN Package: 00074983801244
  • Standard Package Volume Ft3: 0.0099
  • Standard Package Weight Pounds: 0.3300
  • Std Package Height In: 1.9
  • Std Package Height MM: 48.26
  • Std Package Length In: 4.3
  • Std Package Length MM: 109.22
  • Std Package Width In: 1.95
  • Std Package Width MM: 49.53
  • Std. Pkg. UOM: Piece
  • UOM EA PK: PK
  • Std. Pkg. Qty.: 100
  • GTIN Carton: 50074983801249
  • Standard Carton Volume Ft3: 0.0099
  • Standard Carton Weight Pounds: 1.6500
  • Std Carton Height In: 4.35
  • Std Carton Height MM: 110.49
  • Std Carton Length In: 10.15
  • Std Carton Length MM: 109.22
  • Std Carton Width In: 2.4
  • Std Carton Width MM: 60.96
  • Std Ctn Qty: 500
  • Min. Order UOM: Piece
  • Country of Origin 2Digit: MX
  • RoHS Compliant: Compliant
  • EAN: 00074983801244
  • REACH Status: False
  • California Pro65 Cancer: No
  • Buy American Compliant: Y
  • ARRA Compliant: Y
  • Mercury Content Indicator: No
  • Lead Content Indicator: N
  • Restricted Use of Hazardous Substances: N
  • Hazardous Material Flag: N
  • Min Order Qty: 100
  • Pallet Quantity: 0
  • Pallet Volume: 0.000000
  • Pallet Weight: 0.0000

Overview

Codale Part No. 115182
Product Long Description Ring Terminal, Vinyl Insulated, 16 - 14 American Wire Gauge (AWG), 5/16 Inch Stud Size, Funnel Entry. Ring Terminal, Vinyl Insulated, 16 - 14 American Wire Gauge (AWG), 5/16 Inch Stud Size, Funnel Entry. Insulation support helps to prevent wire damage in bending applications. Ring tongue design assures a secure connection in high vibration applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up 600 Volts per UL 486A/B. Standard Package.
Sub Brand Pan-Term
For Use With CT-100A, CT-600-A (CT-550CH) CT-1550, CT-1551, CT-2500(CT-2550CH)
Barrel Type Funnel
Color Code Blue
Flammability Rating UL 94 V-0
Packaging Type Bottle
Product UPC 07498380124
Finish Tin-Plated
Width 0.46 in
Size M8
Color Blue
Type Loose Piece
Barrel Type Funnel
Material Copper
Country of Origin MX
Wire Size 16-14 AWG
Temperature Rating 221 F
Pkg Qty 100
Family Brand Name Panduit
Tc Connection Funnel Entry
Max Operating Temperature 221 degrees F
Overall Length 1.12 in
Barrel Length 0.56 in
Color Coding Blue
Enclosure Ring shape
Sub Brand Pan-Term
MDM DDS PROP65 WARNING No
Voltage 600 Volt
UNSPSC 39121409
