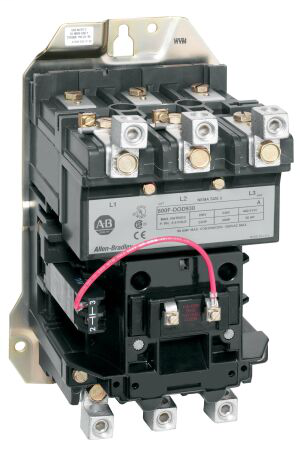

Allen-Bradley 500F-BOD930 NEMA Size 1 AC Contactor
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$455.00/ea
In Stock | 7 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 500F-BOD930
Codale Part # 125180

Features

  • Can be field wired for single- or three-phase applications
  • 120V AC coil and one N.O. auxiliary contact are included as standard
  • Remote operation by pilot devices
  • Feed-through wiring for motor loads

Specifications

  • Max. Hp (230V) 1-Phase Motor Voltage: 7.5
  • Max. Hp (200V) 3-Phase Motor Voltage: 7.5
  • Max. Hp (230V) 3-Phase Motor Voltage: 7.5
  • Max. Hp, 50 Hz (380...415V) 3-Phase Motor Voltage: 10
  • Max. Hp (460...575V) 3-Phase Motor Voltage: 10
  • Maximum Load Current: 27
  • Size: NEMA 1

Product

  • Product Type: Open Style

Assembly

  • Assembly?: Modular Kit

Contactor Data

  • Continuous Ampere Rating (A): 27
  • NEMA Size: NEMA 1
  • Enclosure Type: Open
  • Coil Voltage: 110/120V 50/60 Hz
  • Pole Configuration: 3 Power Poles
  • With One Auxiliary Contact: Yes

Overview

Codale Part No. 125180
Product Long Description NEMA Feed Through Contactor AC, Size 1, Open, 110-120V 50/60Hz, 3 Pole - 1NO
Size NEMA 1
DC Coil Voltage 110/120V 50/60 Hz
Enclosure Specification Open
Product UPC 78118015607
Type AC Contactor
Applications 3
Coil Voltage 110/120 V
Family Brand Name Allen Bradley
NEMA 1
Enclosure Type Open
Number of Poles 3 Pole
Standard CE,CSA,CUL,KC,MARINE,UL
Nema Size 1
