Manufacturer | Allen Bradley / Rockwell |
---|---|
Mfg Catalog # | 872C-N12NP18-D4 |
Codale Part # | 1083655 |
UPC | 61132015795 |

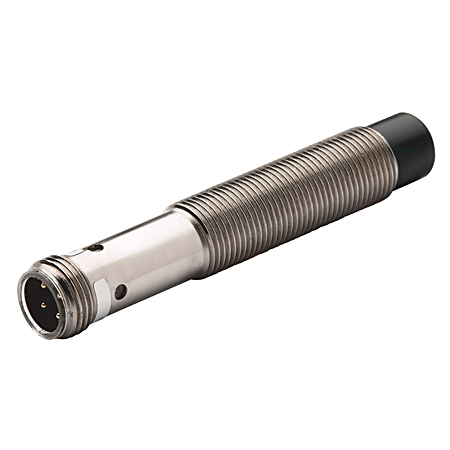

Catalog Description | Inductive Prox Sensor,Nickel Brass Inductive Sensor,18 mm Barrel Diameter,DC Unshielded Extended,12 mm Sensing Distance,Normally Open Sourcing,Standard Barrel,4 Pin DC Micro QD,10-30V DC |
Codale Part No. | 1083655 |
Product Long Description | Inductive Prox Sensor, Nickel Brass Inductive Sensor, 18 mm BarrelDiameter, DC Unshielded Extended, 12 mm Sensing Distance, Normally OpenSourcing, Standard Barrel, 4 Pin DC Micro QD, 10-30V DC |
Application | 3-Wire DC Extended Range Standard Barrel |
Voltage Rating | 10 - 30V DC |
Connection Type | Micro Quick-Disconnect (DC) |
Output Type | N.O., Source (PNP) |
Barrel Type | Standard |
Sensing Distance | 12mm |
Product Short Description | Proximity Sensor, 3-Wire DC Extended Range Standard Barrel, 18mm Diameter, Tubular:Nickel Plated BrassRectangular, Standard, 12mm Sensing Distance, Unshielded, N.O., Source (PNP) Output, Micro QD (DC) |
Item Long Description | 18 mm Barrel Inductive Prox Sensor |
MDM Pkg GTiN | 00611320157956 |
Size | 18 mm Barrel Diameter |
Voltage | 30 Volt |
Type | Cylinder, Screw-Thread, Metallic Target, Barrel |
Barrel Type | Standard |
Material | Metal |
Applications | DC Unshielded Extended |
Mounting Type | Concise |
Connection Type | Plug-in |
Barrel Diameter | 18 mm |
Family Brand Name | Allen Bradley |
Tc Connection | 4 Pin DC Micro QD |
Output | Normally Open |
Blade Dimensions | 18 mm dia x 64 mm L |
Sensing Range | 12 mm |
Maximum Load Current | 400 mA |
Standard | C-TICK,CCC,CE,CUL,KC |
