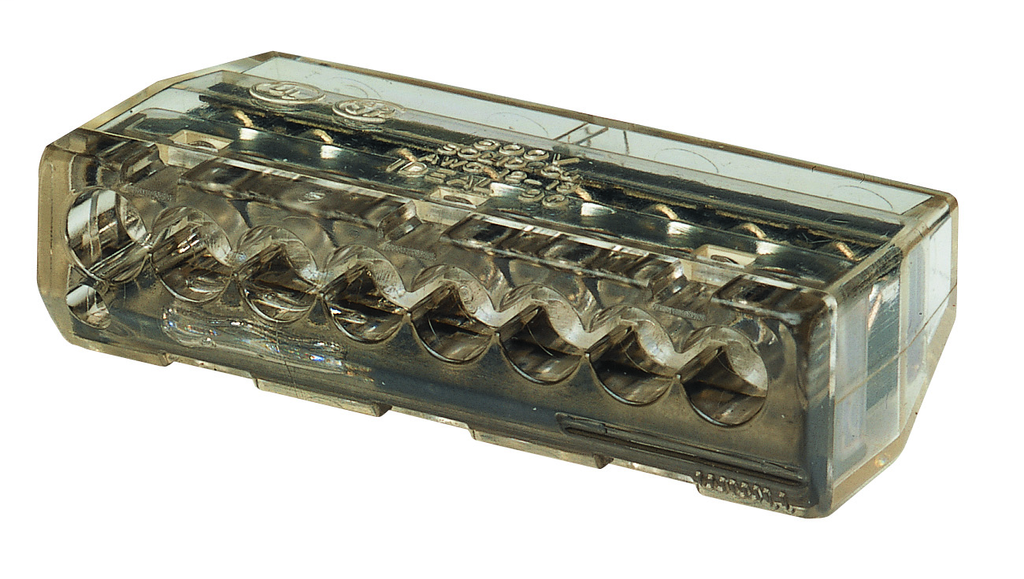

In-Sure® Push-In Wire Connector, Model 90 8-Port Black, Jar of 100
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$61.99/c (100 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-090J
Codale Part # 447854
In-SureĀ® Push-In Wire Connector, Model 90 8-Port Black, Jar of 100

Overview

UPC 78325046087
Product Description WIRE CONNECTOR PUSH-IN, BLACK
Catalog Description IDEAL, Wire Connector, In-Sure, Push-In, Size: 0.355 IN Length X 1.380 IN Width X 0.717 IN Height, Connection: 8 Ports, Wire Size: #12 AWG - #20 AWG Solid, #14 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand Or Less) Stranded, #12 AWG - #14 AWG (19 Strand Or Less) #16 AWG (26 Strand Or Less) 318 AWG (16 Strand Or Less) Stranded (Tin Bonded), Color: Black, Voltage Rating: 600 V Maximum Building Wire, 1000 V Maximum Signs And Lighting Fixtures, Temperature Rating: 105 DEG C Shell Rated, Wire Type: Solid, Stranded, Stranded (Tin Bonded), Model: 90
Codale Part No. 447854
Product Long Description Strip, push, connect the fastest way to make a connection.
Product Short Description In-Sure® Push-In Wire Connector, Model 90 8-Port Black, Jar of 100
Item Long Description Strip, push, connect the fastest way to make a connection.The In-Sure Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used. Simply push the wire in the low insertion force makes it easy.The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection. The ergonomic design is easier to grip which means more comfortable push-in connections. The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.UL Listed, CSA Certified, and rated to 600V the In-Sure saves time and improves productivity while perfecting connections.
MDM Pkg GTiN 00783250460878
Length 0.355 in
Finish Tin Plated
Size 0.355 IN Length X 1.380 IN Width X 0.717 IN Height
Color Black
Type Push-In
Material Polycarbonate
Conductor Size 20-12 AWG Solid, 16-
Applications For Residential, Light Commercial, Lighting Retrofit and Pre-Fab Wiring Systems
Wire Size 20-12/16-14 AWG
Wire Type Solid, Stranded, Str
Connection Type Push-In
Temperature Rating 105 C
Family Brand Name Ideal
Number of Ports 8
Tc Connection 8 Ports
Sub Brand In-Sure
MDM DDS PROP65 WARNING WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Voltage 600 Volt
