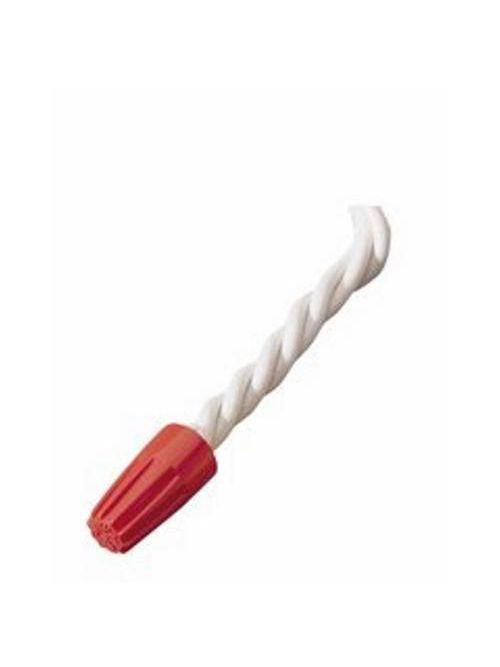

Wire-Nut® Wire Connector, Model 73B® Orange, Bag of 500

Manufacturer	Ideal Industries
Mfg Catalog #	30-273
Codale Part #	449570

Overview

UPC	78325030273
Product Description	22-14AWG 600V WIRE-NUT WIRE CONNECTOR, 500BAG
Catalog Description	IDEAL, Wire Connector, Wire-Nut, Twist-On, Number Of Conductors: 1 to 5, Conductor Range: 22 - 14 AWG, Min 1-18 w/2-20 MAX 2-14, Color: Orange, Material: Flame-retardant polypropelene, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F), Model Number: 73B, Flammability Rating: UL 94V-2
Codale Part No.	449570
Product Long Description	The connector that started it all, an American Classic.
Product Short Description	Wire-Nut® Wire Connector, Model 73B® Orange, Bag of 500
Item Long Description	The connector that started it all, an American Classic.The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B, 72B, and 73B, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.
MDM Pkg GTiN	00783250302734
Length	55/64 in
Finish	Zinc Plated
Color	Orange
Type	Twist-On
Diameter	7/16 in
Material	Flame-Retardant Poly
Number of Conductors	1 to 5
Conductor Size	22-14 AWG
Applications	Insulating or Joining 2 or more conductors
Temperature Rating	105 C
Family Brand Name	Ideal
Environmental Conditions	105 C
Sub Brand	Wire-Nut
MDM DDS PROP65 WARNING	WARNING: Cancer - www.P65Warnings.ca.gov.
Voltage	600 Volt
MDM PRODUCT KEYWORD	Wirenuts Wire Nuts Connectors
