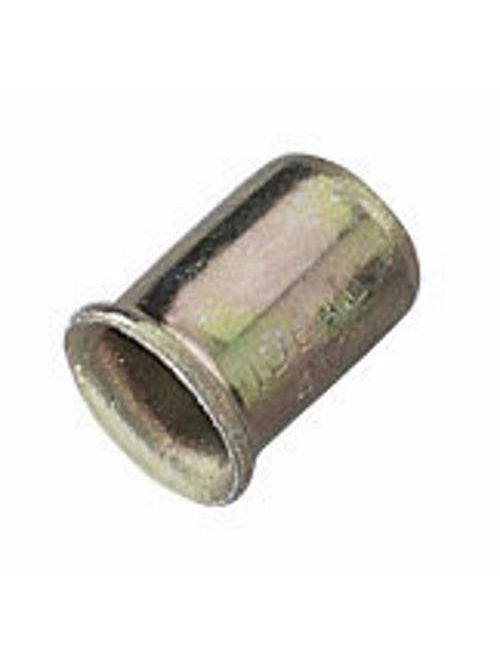

Ideal Industries 30-410 100/Bag Crimp Sleeve Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$129.99/m (1000 ea)
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 30-410
Codale Part # 50031

Features

  • Three models cover a wire range from 18 AWG to 4 AWG
  • Long-zinc plated steel sleeves maximize contact area with conductors
  • UL listed to 486C and CSA certified to C22.2 #188; comply with Federal Specification W-S-610E

Specifications

  • IDEAL hand tools U.L. listed for Models 410, 411, 412: 30-425, 30-429, 30-430

Overview

UPC 78325030410
Codale Part No. 50031
Product Long Description Crimp connectors from IDEAL are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
Item Long Description Crimp connectors from IDEAL are designed for making fast, permanent, pressure-type connections. Whether there is a connection in a high vibration environment or installations at an OEM, there is a solution available. The steel and copper crimp connectors cover a wide range of combinations and have available insulating caps to protect against dangerous electrical shock.
MDM Pkg GTiN 00783250304103
Finish Zinc-Plated
Type Standard Version, Short Sleeve
Material Steel, Copper Sleeves
Conductor Size 10-18 AWG
Applications Designed For Fast, Perrmanent, Pressure-Type Connections, Long, Zinc-Plated Steel Sleeves Maximize Contact Area With Conductors, Will Not Vibrate Loose When Securely Crimped, UL Listed to 486C and CSA Certified to C22.2 #188, Comply With Federal Specifica
Family Brand Name Ideal
Voltage 600 Volt
