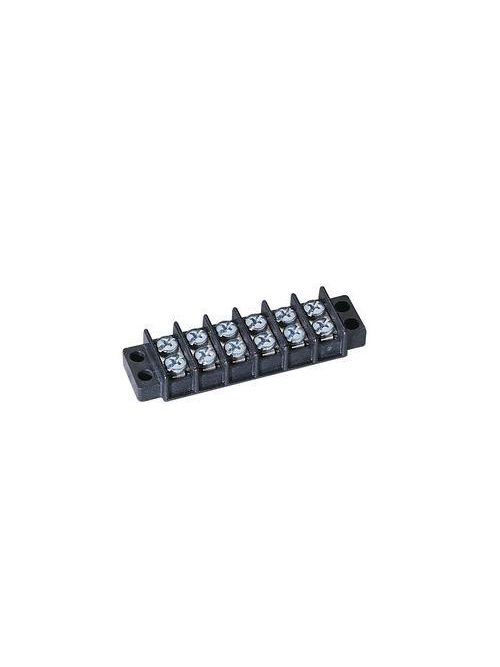

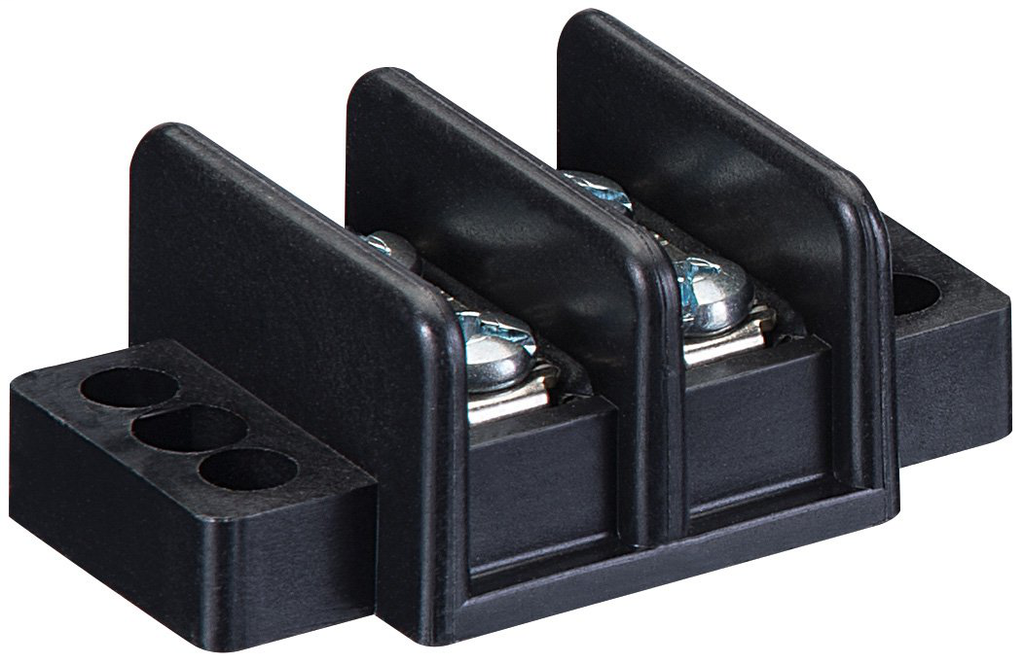

Ideal Industries 89-204 CSA UL Listed 22-10 AWG 0.562 Inch Wire Diameter 30 Amp Terminal Strip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$12.87/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 89-204
Codale Part # 50041

Features

  • .562 (14.82mm) center spacing
  • Accepts wire sizes from 10 through 22 AWG Cu
  • #8-32 Philslot, zinc-plated steel terminal screws
  • Heavy-duty, corrosion-resistant screws, surface plates, and optional hardware
  • Rugged polyester thermoplastic base (UL Rated 94V-0)
  • UL Recognized (E82048) and CSA Certified (LR15364)

Specifications

  • Recommended torque: 16 in.-lb.

Overview

UPC 78325089204
Codale Part No. 50041
Product Long Description IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.
Item Long Description IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.
Material Zinc-Plated Steel Screw
Wire Size 22-10 AWG
Torque 16 in
Family Brand Name Ideal
Spacing 0.562 in
MDM DDS PROP65 WARNING WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Color Black
Voltage 600 Volt
Conductor Size 22-10 AWG
Mounting Type Direct
Connection Type #8 Screw
Temperature Rating 40 - 130 C
Blade Dimensions 33.78 mm W x 20.57 mm H
Number of Poles 4 Pole
Torque Rating 16 in-lb
