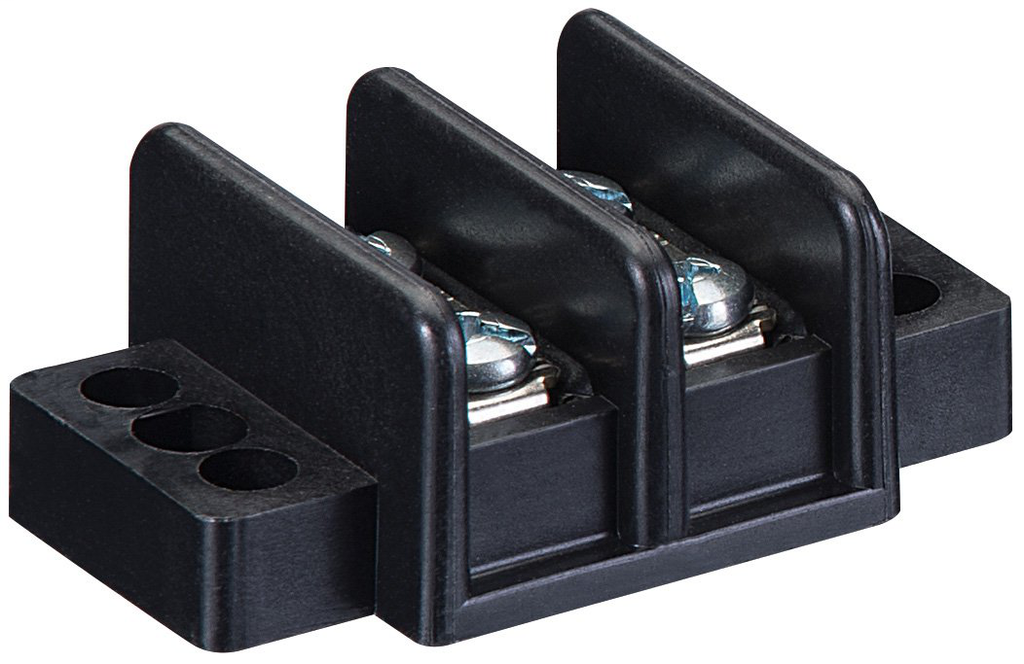

Ideal Industries 89-210 CSA/UL Listed 22-10 AWG 0.562 Inch Wire Diameter 30 Amp Terminal Strip
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$31.29/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Ideal Industries
Mfg Catalog # 89-210
Codale Part # 50044

Features

  • .562 (14.82mm) center spacing
  • Accepts wire sizes from 10 through 22 AWG Cu
  • #8-32 Philslot, zinc-plated steel terminal screws
  • Heavy-duty, corrosion-resistant screws, surface plates, and optional hardware
  • Rugged polyester thermoplastic base (UL Rated 94V-0)
  • UL Recognized (E82048) and CSA Certified (LR15364)

Specifications

  • Recommended torque: 16 in.-lb.

Overview

UPC 78325089210
Codale Part No. 50044
Product Long Description IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.
Item Long Description IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.
Color Black
Material Zinc-Plated Steel Screw
Conductor Size 0.34 - 6 mm
Mounting Type Direct
Wire Size 22-10 AWG
Connection Type Screw
Torque 16 in
Temperature Rating -40 to 130 C
Family Brand Name Ideal
Number of Poles 10 Pole
Spacing 0.562 IN
MDM DDS PROP65 WARNING WARNING: Cancer and Reproductive Harm -  www.P65Warnings.ca.gov.
Voltage 600 Volt
