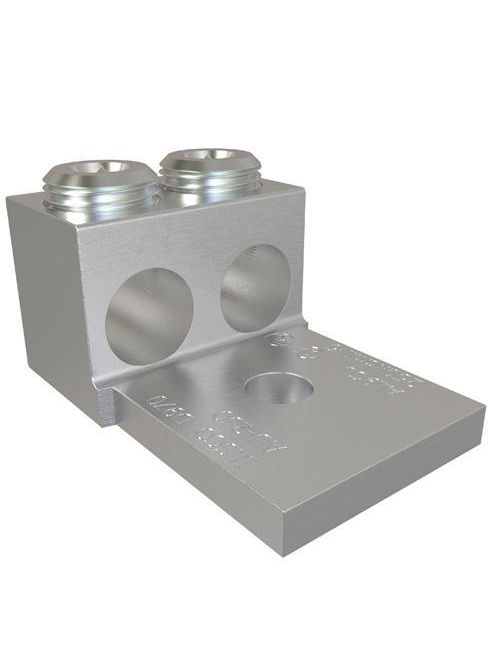

ILSCO AU-250 AL MECH (2) 250-6
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Already a Customer? Log in to view your pricing
Manufacturer ILSCO
Mfg Catalog # AU-250
Codale Part # 454886
ILSCO AU-250 AL MECH (2) 250-6


UPC 78366900330
Catalog Description AL MEC (2)250-6 25/64 T UL CSA
Codale Part No. 454886
Length 2.5620
Width 1.6480
Height 1.1870
Conductor Range 250 kcmil-6 AWG
Hex Size 5/16
Item Long Description ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 3/8 in, UL 486A/B Listed, UL 467 Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 2 conductors, 2 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,
MDM Pkg GTiN 00783669003307
Length 2.562 in
Finish Tin Plated
Width 1.648 in
Voltage 2000 Volt
Material High Strength 6061-T
Number of Conductors 2
Conductor Size 250 MCM - 6 AWG
Applications For Terminating Connector
Height 1.187 in
Standard CSA File Number: LR-
Bolt Size 3/8 in
Temperature Rating 90 C
Family Brand Name ILSCO
Conductor Type Aluminum and Copper
Blade Dimensions 2.567 in L x 1.656 i
Mounting Hole Size 25/64 in
Sub Brand ClearChoice
Color Silver
Tc Connection Mechanical
MDM PRODUCT KEYWORD 2809, 90816, TDLA-250, LAM2A250-38-6Y, L2A-250, ADR25-21, AD250, K2A29U, AA-250, 2-250T, RU-250
