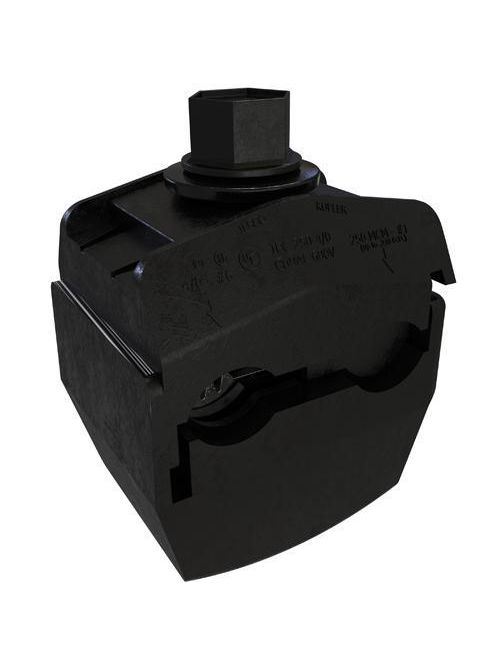

ILSCO IPC-250-4/0 MAIN 250MCM-1 TAP4/0AWG-6AWG AL/CU ALUMINUM/ COPPERINSULATED CONNECTOR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$59.99/ea
In Stock | 32 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ILSCO
Mfg Catalog # IPC-250-4/0
Codale Part # 49169
ILSCO IPC-250-4/0 MAIN 250MCM-1 TAP 4/0AWG-6AWG AL/CU ALUMINUM/ COPPER INSULATED CONNECTOR

Overview

UPC 78366952373
Catalog Description IPC (R)250-1 (T)4/0-6 T UL CSA
Codale Part No. 49169
Hex Size 5/8
Item Long Description KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 1 Str, Copper/Aluminum Secondary Conductor 4/0 Str - 6 Str, 2 conductors, Nylon insulation, Drive Type Main 5/8 External Hex, rated for 600 V, primary color Black, 1 poles,
MDM Pkg GTiN 00783669523737
Color Black
Voltage 600 Volt
Type Dual-Rated
Material Glass-Filled Nylon B
Conductor Size 250 MCM - 1 AWG Main
Applications Insulation Piercing Connector
Temperature Rating 90 C
Family Brand Name ILSCO
Conductor Type Copper and Aluminum
Blade Dimensions 2.337 in W x 2.867 i
Used With Class B or C Stranded Conductor
Sub Brand Kup-L-Tap
Finish Tin Plated
Number of Conductors 2
Number of Ports 1
Tc Connection Mechanical
MDM PRODUCT KEYWORD IPC-250-4/0
