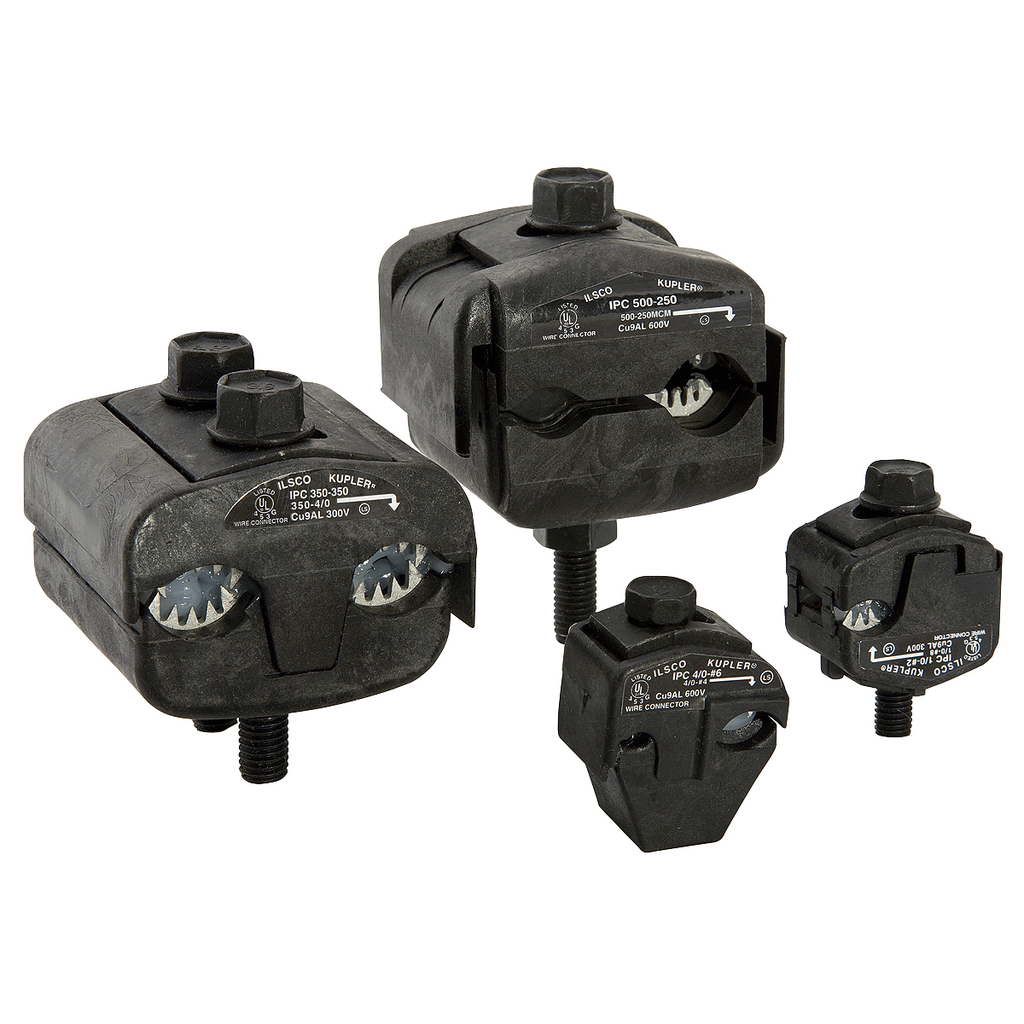

ILSCO IPC-4/0-6 UL/CSA Listed 4/0-4 AWG Main Range 6 - 14 AWG Tap Range Insulation Piercing Connector

$15.87/ea

In Stock | 267 available at 6 locations

Adding...

Already a Customer? Log in to view your pricing

Manufacturer	ILSCO
Mfg Catalog #	IPC-4/0-6
Codale Part #	49171

Specifications

UPC Code: 78366953269
UNSPSC Code: 39121408
Dual Rated: TRUE
Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str - 4 Str
Conductor Size CU (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str - 4 Str
Conductor Size AL (Primary, run, main, line): 4/0 Str,3/0 Str,2/0 Str,1/0 Str,1 Str,2 Str,3 Str,4 Str
Conductor Range CU Stranded (Secondary, tap, load): 6 Str - 14 Str
Conductor Range CU Solid (Secondary, tap, load): 10 Sol - 14 Sol
Conductor Size CU (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Conductor Range AL Stranded (Secondary, tap, load): 6 Str - 14 Str
Conductor Range AL Solid (Secondary, tap, load): 10 Sol - 14 Sol
Conductor Size AL (Secondary, tap, load): 10 Sol,12 Sol,14 Sol,6 Str,7 Str,8 Str,10 Str,12 Str,14 Str
Clamping Bolt Size: 5/16/2018
Drive Size Main: 2-Jan
Drive Type Main: External Hex
Number of Wire Binding Screws per Port: 1
Wire Binding Screw Size: 16-May
Wire Binding Torque: 156
Length (IN): 1.1179
Length (mm): 28.39466
Width (IN): 1.431
Height (IN): 1.928
Height (mm): 48.9712
Weight (LB): 0.252
Max Insulation OD (IN): 0.615
Max Insulation OD (mm): 15.621
Material: Copper
Clamping Hardware Material: Steel
Clamping Hardware Finish: Tin
Conductor Material: Copper,Aluminum
Connector Finish: Tin
Insulation: Nylon
Color: Black
Direct Burial: FALSE
Temperature Rating: 90°C
Voltage Rating: 600 V
CSA File Number: LR-29601
CSA Standard: C22.2 No. 65-03
UL File Number: E6207
UL / CULUS Specification: UL 486A/B Listed
Prop65 Compliance: WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Connection: Mechanical
Conductor Type: Solid,Stranded
Contains DE-OX: FALSE
Number of Conductors: 2
Number of Poles: 1
Number of Ports Main: 1
Number of Ports Tap: 1
Wire Orientation: Parallel
Connector Amperage Rating AL (Derated where applicable): 60 Amps
Connector Amperage Rating CU (Derated where applicable): 75 Amps
Bag Quantity: 1

Overview

UPC	78366953269
Codale Part No.	49171
Hex Size	1/2
Item Long Description	KUP-L-Tap Insulation Piercing Connector, Mechanical connection, Dual Rated, Copper material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4/0 Str - 4 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 6 Str - 14 Str, 2 conductors, Nylon insulation, Drive Type Main 1/2 External Hex, rated for 600 V, primary color Black, 1 poles,
Color	Black
Voltage	600 Volt
Type	Dual-Rated
Material	Glass-Filled Nylon Body, Tin Plated Copper Teeth
Conductor Size	4/0-4 AWG Main, 6-14 AWG Tap
Applications	Insulation Piercing Connector
Temperature Rating	90 C
Pkg Qty	12
Family Brand Name	ILSCO
Conductor Type	Copper and Aluminum
Blade Dimensions	1.453 in W x 1.928 in H
Used With	Class B or C Stranded Conductor
Sub Brand	Kup-L-Tap
Finish	Tin Plated
Number of Conductors	2
Number of Ports	1
Tc Connection	Mechanical
