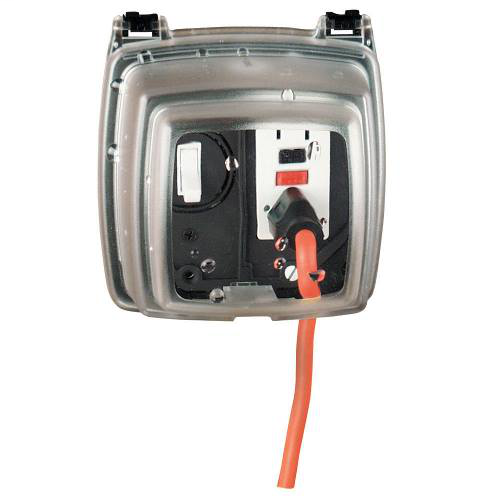

Intermatic WP1150C 1-Gang Vertically/Horizontal Plastic Weatherproof Outlet Cover
Product image thumbnail 0
Product image thumbnail 1
$17.37/ea
In Stock | 20 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Intermatic
Mfg Catalog # WP1150C
Codale Part # 496331

Features & Applications

Features

  • Complies with 2014 NEC Article 314.15 for damp and wet locations
  • Exceeds CEC Article 26-702
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 8 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited

Applications

  • Industrial
  • Commercial
  • Manufacturing
  • Residential
  • Agricultural
  • Signage
  • Athletic Fields

Specifications

  • Gang Type: Single
  • Color: Clear
  • Is Extra Duty Rated: No
  • Hinge Direction: Horizontal
  • Insert Types Included: WP17
  • Number of Included Inserts: 3
  • Weatherproof Cover Material: UV Stabilized Plastic
  • Product Height (in): 5 3/8
  • Product Height (mm): 136.5
  • Product Width (in): 3 1/2
  • Product Width (mm): 88.9
  • Product Depth (in): 4 3/4
  • Product Depth (mm): 121
  • Warranty: 1-year limited

Documents & Downloads

Product Rating


Related Accessories and Parts

  • WP17: Single-Gang Inserts

Overview

UPC 07827507283
Codale Part No. 496331
Product Long Description Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
Color Clear
Warranty length 1-year limited
Item Long Description Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.
MDM Pkg GTiN 00078275072831
Finish Untreated
Warranty Length 1 yr
Width 3 1/2 in
Size 4-3/4 DEPTH IN, 120.65 DEPTH MM
Color Clear White
Type Rectangular, Receptacle, Lockable
Insulation Type Neoprene Gasket
Material Heavy Duty Polycarbonate
Applications Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Mounting Type Vertical, Horizontal, Screw
Depth 120.65 mm
Height 136.5 mm
Cable Size (2) 14 Gauge, (1) 10 Gauge
Standard 2008 NEC Article 406.8,UL Certified For Type 3R,UL/CSA Cold Impact Testing
Shape Rectangle
Family Brand Name Intermatic
Insulation Material Neoprene Gasket
Construction Heavy-Duty Polycarbonate
Enclosure Type NEMA 3R
Number of Outlets 1
Gang Type Single
Construction Features Heavy-Duty Polycarbonate
