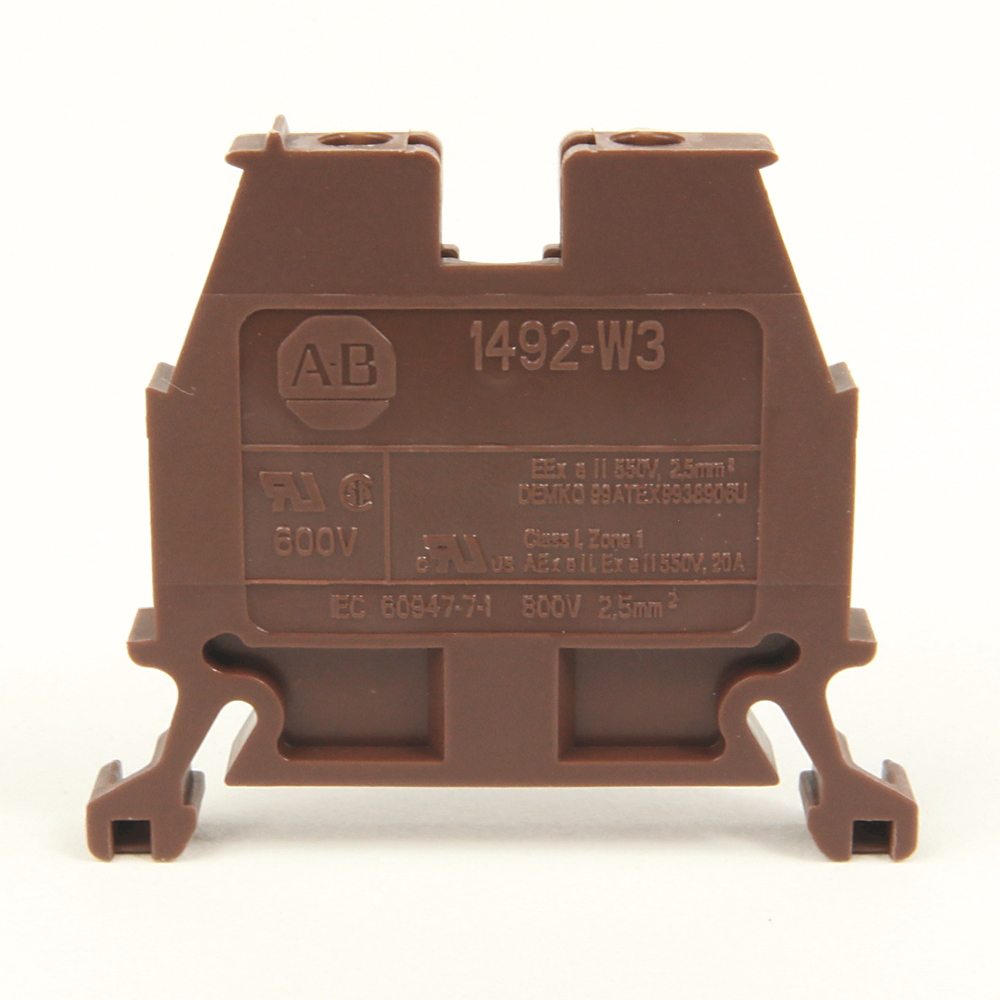

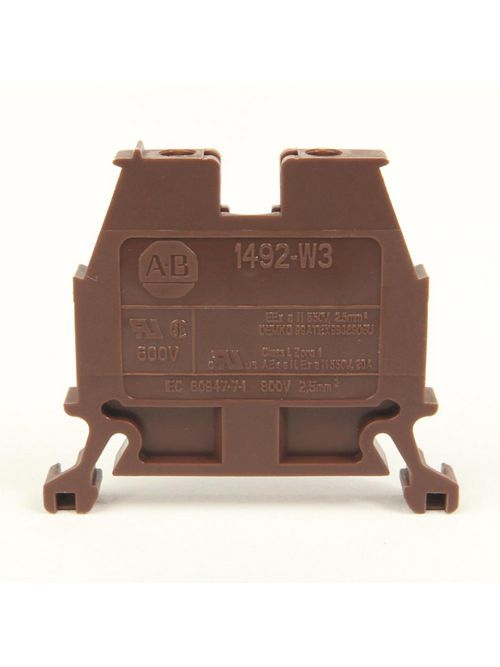

Allen-Bradley 1492-W3-BL 2.5 mm Standard Terminal Block
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$3.78/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allen Bradley / Rockwell
Mfg Catalog # 1492-W3-BL
Codale Part # 109577

Features

  • Tin-plated terminal and zinc chromate steel screws
  • Self-locking screw type clamp design
  • Counter-sinking of clamping screws
  • Backed out screws
  • Easy installation or removal from both sides of DIN Rail
  • Copper current bar and tin-plated surface
  • Compatible with several high visibility snap-in marker cards
  • Backed-out screws
  • Finger-safe housing
  • Four-sided funnel wire guides
  • Wide range of accessories available

Specifications

  • Special Features: Single-circuit terminal block

Block Style

  • Base Block Style: Standard Feed-Through Blocks

Base Data

  • Base Block Type: Space-Saver Feed-Through Blocks

Detail Data

  • Features: Single-circuit terminal block
  • Maximum Wire Size & Rating: UL: 30-14 AWG (20A @600V AC/DC) CSA: 22-14 AWG (20A @600V AC/DC) IEC: 2.5mm² (24A @800V AC/DC) EEx e II: 2.5mm² (24A @ 550V AC/DC)
  • Color: Black

Overview

Codale Part No. 109577
Product Long Description Terminal Block, Screw Connection, Space Saver, Feed Through - Single Circuit, 5 x 45.3 x 35mm (0.20 x 1.78 x 1.38 in), 1 Pole, Black, Pkg. Qty. of 50, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/DC, MAXIMUM CURRENT
Color Black
Product UPC 66246823543
Color Black
Type IEC Screw Space Saver Terminal Block
Wire Size 14 AWG
Family Brand Name Allen Bradley
Terminal Size 5 x 45.3 x 35mm (0.20 x 1.78 x 1.38 in)
Sub Brand 1492
Voltage 550 Volt
Standard CCC,CE,CSA,CUL,KC,UL
Amperage 20 Amp
