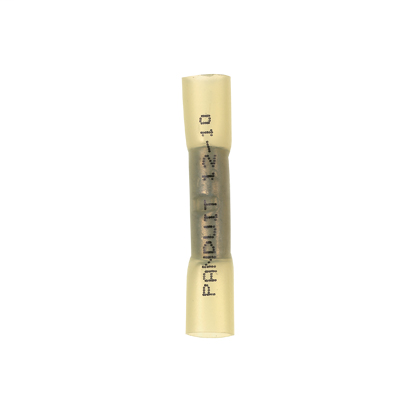

PANDUIT BSH10-E BUTT SPLICE 12-10AWG HEAT SHRINK

Manufacturer	Panduit
Mfg Catalog #	BSH10-E
Codale Part #	115963

Overview

UPC	07498381825
Catalog Description	Heat Shrink Butt Splice, 12 10 AWG wire range.
Codale Part No.	115963
Product Long Description	Butt Splice, Heat Shrink, 12 - 10 American Wire Gauge (AWG). Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture. After crimping, heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
Sub Brand	Pan-Term
Barrel Type	Seamless
Color Code	Yellow
Product Short Description	Heat Shrink Butt Splice, 12 10 AWG wire range.
Item Long Description	Butt Splice, Heat Shrink, 12 - 10 American Wire Gauge (AWG). Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture. After crimping, heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
MDM Pkg GTiN	00074983818259
Finish	Tin Plated
Size	12-10
Color	Yellow
Type	Insulated
Barrel Type	Seamless
Material	Copper
Country of Origin	US
Temperature Rating	230 F
Pkg Qty	20
Family Brand Name	Panduit
Tc Connection	Standard
Overall Length	1.64 in
Color Coding	Yellow
Sub Brand	Pan-Term
MDM DDS PROP65 WARNING	No
Voltage	null
Conductor Size	12-10 AWG
Connection Type	Standard
Contact Material	Copper
