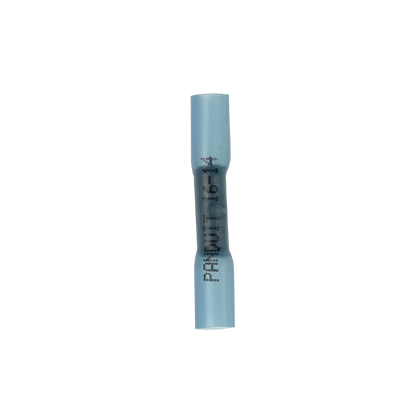

PANDUIT BSH14-Q BUTT SPLICE
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$220.95/c (100 ea)
ea
Adding...
Order in multiples of 25 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer Panduit
Mfg Catalog # BSH14-Q
Codale Part # 115962
PANDUIT BSH14-Q BUTT SPLICE

Categories

Overview

UPC 07498381824
Product Description BUTT SPLICE, HEAT SHRINK, 16-14 AWG
Catalog Description Heat Shrink Butt Splice, 16 14 AWG wire range, standard package.
Codale Part No. 115962
Product Long Description Butt Splice, Heat Shrink, 16 - 14 American Wire Gauge (AWG). Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture. After crimping, heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
Sub Brand Pan-Term
Barrel Type Seamless
Color Code Blue
Product Short Description Heat Shrink Butt Splice, 16 14 AWG wire range, standard package.
Item Long Description Butt Splice, Heat Shrink, 16 - 14 American Wire Gauge (AWG). Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture. After crimping, heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
MDM Pkg GTiN 00074983818242
Finish Tin Plated
Size 16-14
Color Blue
Type Insulated
Barrel Type Seamless
Material Copper
Country of Origin US
Temperature Rating 230 F
Pkg Qty 25
Family Brand Name Panduit
Tc Connection Standard
Overall Length 1.45 in
Color Coding Blue
Sub Brand Pan-Term
MDM DDS PROP65 WARNING No
Voltage null
Conductor Size 16-14 AWG
Connection Type Standard
Contact Material Copper
