Manufacturer | Panduit |
---|---|
Mfg Catalog # | BSH18-Q |
Codale Part # | 115961 |
UPC | 07498381823 |

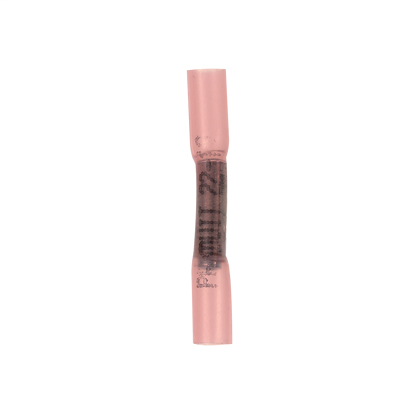

Product Description | BUTT SPLICE, HEAT SHRINK, 22-18 AWG |
Catalog Description | Heat Shrink Butt Splice, 22 18 AWG wire range. |
Codale Part No. | 115961 |
Product Long Description | Butt Splice, Heat Shrink, 22 - 18 American Wire Gauge (AWG). Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture. After crimping, heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C. |
Sub Brand | Pan-Term |
Barrel Type | Seamless |
Color Code | Red |
Product Short Description | Heat Shrink Butt Splice, 22 18 AWG wire range. |
Item Long Description | Butt Splice, Heat Shrink, 22 - 18 American Wire Gauge (AWG). Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Heat shrink polyolefin sleeve with hot melt adhesive protects against moisture. After crimping, heat shrink insulation is completed with a standard heat gun. Minimum continuous operating temperature -65 degrees Fahrenheit (-55 degrees Celsius). Maximum continuous operation temperature 230 degrees Fahrenheit (110 degrees Celsius). Shrink temperature 300 degrees Fahrenheit (150 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C. |
MDM Pkg GTiN | 00074983818235 |
Finish | Tin Plated |
Size | 1.45 IN |
Color | Red |
Type | Insulated |
Barrel Type | Seamless |
Material | Copper, Tin Plated H |
Country of Origin | US |
Wire Size | 22-18 AWG |
Temperature Rating | -65 to 230 F |
Pkg Qty | 25 |
Family Brand Name | Panduit |
Overall Length | 1.45 in |
Color Coding | Red |
Sub Brand | Pan-Term |
MDM DDS PROP65 WARNING | No |
Conductor Size | 22-18 AWG |
Connection Type | Crimp |
Strip Length | 0.31 in |
Contact Material | Copper |
