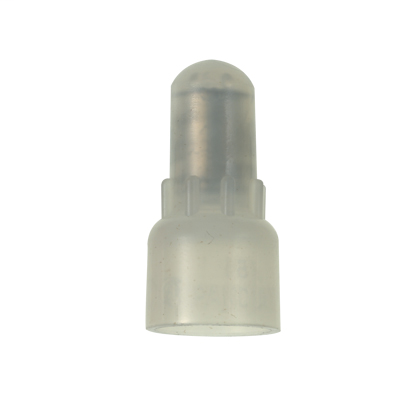

PANDUIT JN218-216-C WIRE JOINT

Manufacturer	Panduit
Mfg Catalog #	JN218-216-C
Codale Part #	116420

Overview

UPC	07498384000
Product Description	WIRE JOINT, NYLON INS, 2 #22 - 2 #16 AWG
Catalog Description	Wire Joint, nylon insulated, 2 #22 - 2 #16 AWG, standard package.
Codale Part No.	116420
Product Long Description	Wire Joint, Nylon Insulated, 2 No. 22 - 2 No. 16 American Wire Gauge (AWG), Large barrel, designed to accommodate from one to seven wires with just one crimp. Accommodates multiple wire sizes in varying combinations. Barrel of terminal internally beveled to provide quick and easy wire insertion. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
Color Code	Clear
Packaging Type	Bag
Product Short Description	Wire Joint, nylon insulated, 2 #22 - 2 #16 AWG, standard package.
Item Long Description	Wire Joint, Nylon Insulated, 2 No. 22 - 2 No. 16 American Wire Gauge (AWG), Large barrel, designed to accommodate from one to seven wires with just one crimp. Accommodates multiple wire sizes in varying combinations. Barrel of terminal internally beveled to provide quick and easy wire insertion. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486C.
MDM Pkg GTiN	00074983840007
Finish	Tin-Plated
Color	Colorless
Type	Wire Joint
Material	Brass
Country of Origin	MX
Wire Size	0.5-2.5 mm
Temperature Rating	221 F
Pkg Qty	100
Family Brand Name	Panduit
Max Operating Temperature	221 degrees F
Overall Length	0.78 in
Color Coding	Clear
Sub Brand	Pan-Term
MDM DDS PROP65 WARNING	No
Voltage	null
