UPC | 07498383202 |

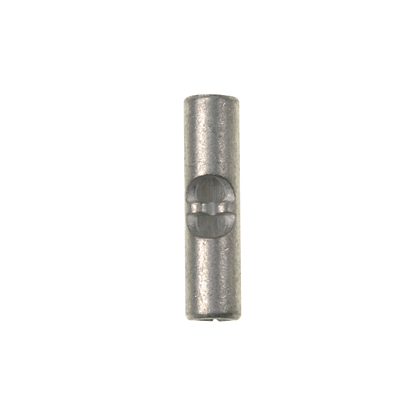

Catalog Description | Butt Splice, non-insulated, 16 14 AWG, standard package. |
Codale Part No. | 116350 |
Product Long Description | Designed to splice two solid or stranded wires together to repair or lengthen wires. Butted configuration provides low profile for limited space applications. Brazed seam protects terminal barrel from splitting during the crimp process. Internal wire stop assures proper length of insertion into terminal barrel. Non-insulated barrel can be used to provide an economical termination when insulation is not required. Maximum recommended operating temperature 302 Degrees Fahrenheit (150 Degrees Celsius). UL and CSA rated up to 2000 Volts per UL 486C. |
Sub Brand | Pan-Term |
Barrel Type | Brazed Seam |
Color Code | Copper |
Product Short Description | Butt Splice, non-insulated, 16 14 AWG, standard package. |
Item Long Description | Butt Splice, non-insulated, 16 - 14 AWG |
MDM Pkg GTiN | 00074983832026 |
Finish | Tin Plated |
Width | 0.16 in |
Size | 16 - 14 |
Type | Standard |
Barrel Type | Brazed Seam |
Material | Copper |
Country of Origin | MX |
Temperature Rating | 302 F |
Pkg Qty | 100 |
Family Brand Name | Panduit |
Tc Connection | Standard |
Overall Length | 0.62 in |
Barrel Length | 0.62 in |
Color Coding | Copper |
Sub Brand | Pan-Term |
MDM DDS PROP65 WARNING | No |
Color | Copper |
Voltage | null |
Conductor Size | 16-14 AWG |
Contact Material | Copper |
UNSPSC | 39121449 |
