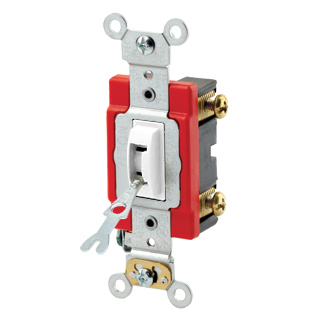

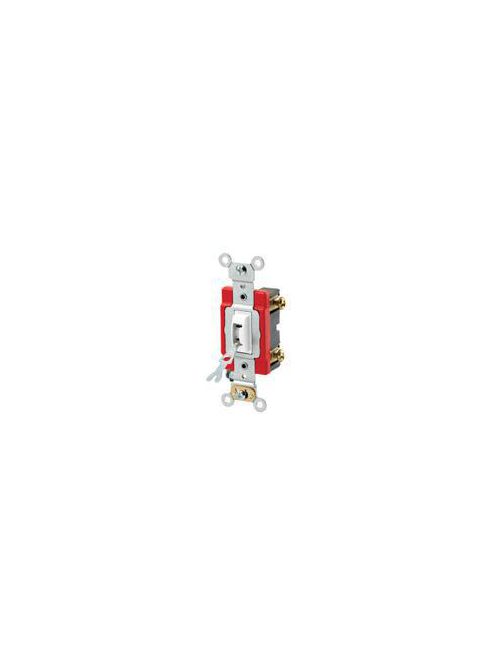

Leviton 1221-2WL 120/277 VAC 20 Amp 1-Pole 2 Hp White Thermoplastic Self Grounding Locking Toggle Quiet Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$50.65/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1221-2WL
Codale Part # 487776

Specifications

Material Specifications

  • Ground Clips: Brass
  • Color: White
  • Cover Material: Thermoplastic
  • Strap Material: Steel
  • Base Material: Thermoplastic
  • Grounding Screw: Brass 8-32
  • Terminal Screws: Brass 8-32
  • Toggle: Polycarbonate
  • Contact Material: Silver Alloy

Standards and Certifications

  • Warranty: 10-Year Limited
  • NOM: 057
  • NEMA: WD-1 & WD-6
  • UL Fed Spec WS896E: File #E7458
  • ANSI: C-73
  • UL Standard: UL 20
  • CSA C22.2 No. 111: File #152105
  • RoHS: Compliant

Electrical Specifications

  • Amperage: 20 A
  • Dielectric Voltage: Withstands 1500V for 1 minute
  • Temperature Rise: Maximum 30 degress C rise
  • Endurance: 50,000 cycles minimum
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Overload UL20 Test: 100 cycles of OL at 4.8 times rated current

Product Features

  • Function: Single-Pole
  • HP Rating: 1HP-120V 2HP-240V-277V
  • Color: White
  • Strap Material: Steel
  • Country Of Origin: Please Contact Customer Service.
  • Grade: Extra Heavy-Duty Industrial Specification Grade
  • Device Type: Tamper-Resistant Toggle Switch
  • Body Material: Thermoplastic
  • Voltage: 120/277 VAC
  • Grounding: Self-Grounding
  • Actuator Material: Thermoplastic Nylon

Mechanical Specifications

  • Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
  • Torque Range: 12-14 inch pounds
  • Termination: Back or Side Wire

AC Horsepower Ratings

  • Max. Amperage: 16 Amp
  • HP Rating: 1HP-120V 2HP-240V-277V

Environmental Specifications

  • Flammability: Rated V-2 per UL 94
  • Operating Temperature: -40°C to 65°C

Overview

UPC 07847735805
Codale Part No. 487776
Color White
Operating Temperature -40°C to 65°C
Grade Extra Heavy-Duty Industrial Specification Grade
Flammability Rating Rated V-2 per UL 94
Contact Material Silver Alloy
Warranty length 10-Year Limited
Body Material Thermoplastic
Grounding Self-Grounding
Termination Back or Side Wire
Item Long Description 20-Amp, 120/277-Volt, Toggle Locking Single-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, White
Warranty Length 10 yr
Size 46 H x 1.31 W x 13 D IN
Color White
Operating Temperature -40 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Industrial
Standard ANSI C-73
Connection Type Back Wired,Side Wired
Torque 12-14 lb-in
Horsepower 1 hp
Base Material Thermoplastic
Body Material Thermoplastic
Toggle Material Polycarbonate
Family Brand Name Leviton
NEMA WD-1,WD-6
Dielectric 1500 V
Flamability Class Rated V-2 Per UL 94
Grounding Self-Grounding
Contact Material Silver Alloy
Tc Connection Back Wired;Side Wired
Actuator Key
Amperage 20 Amp
Max Current 16 A
Blade Dimensions 1.31 in W x 13 in D x 46 in H
Environmental Conditions Flammability (Rated V-2 Per UL94)
Number of Poles 1 Pole
Temperature Rise 30 C
Device Type Tamper-Resistant Toggle Switch
Cover Material Thermoplastic
Action SP
