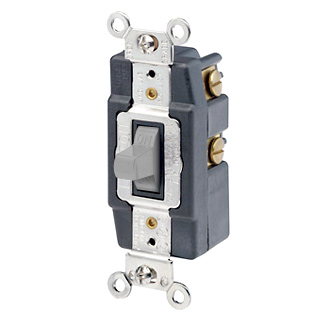

LEVITON 1257GY SPDT MOMENTARY CONTACT 20 AMP 1HP 120/277V RATED 3 POSITION CENTER OFF
$48.79/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 1257-GY
Codale Part # 466018
LEVITON 1257GY SPDT MOMENTARY CONTACT 20 AMP 1HP 120/277V RATED 3 POSITION CENTER OFF

Overview

UPC 07847785527
Codale Part No. 466018
Color Gray
Grade Extra Heavy-Duty Industrial Specification Grade
Warranty length 10-Year Limited
Body Material Thermoplastic
Grounding Self-Grounding
Termination Back or Side Wire
Product Short Description 20 Amp, 120/277 Volt, Toggle Double-Throw Ctr-OFF Momentary Contact Single-Pole AC Quiet Switch, Industrial Grade, Grounding, Back & Side Wired, - Gray
Catalog Description 20 Amp, 120/277 Volt, Toggle, Double Throw, Center Off, Momentary Contact, Single-Pole AC Quiet Switch, Industrial Grade, Grounding, Gray
MDM Item Long Description 20 Amp, 120/277 Volt
MDM Pkg GTiN 00078477855270
Warranty Length 10 yr
Size 46 H x 1.37 W x 2.29 D IN
Color Gray
Operating Temperature -40 To 65 C
Voltage 120/277 Volt
Type Toggle Switch
Applications Commercial
Mounting Type Box
Grade Industrial
Country of Origin Mexico
Standard CSA,UL
Connection Type Back Wired,Side Wire
Horsepower 2 hp
Body Material Thermoplastic
Family Brand Name Leviton
Grounding Self-Grounding
Tc Connection Back Wired;Side Wire
Actuator Toggle
Contact Configuration SPDT
Amperage 20 Amp
Max Current 16 A
Blade Dimensions 1.37 in W x 2.29 in
Environmental Conditions Flammability (Rated
Number of Poles 1
Device Type Toggle Switch
Action SPDT
