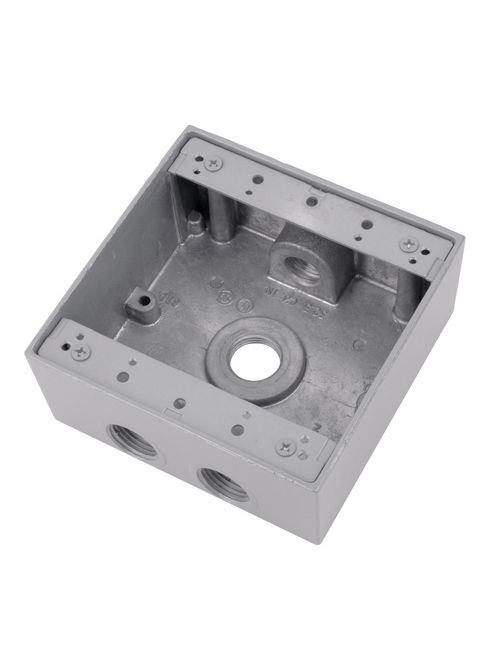

Red Dot 2IH4-2 4-Hole 2-Gang 3/4 Inch Hubs Raintight Device Box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$928.95/c (100 ea)
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer ABB Thomas & Betts
Mfg Catalog # 2IH4-2
Codale Part # 106302

Features

  • Convenient mounting lugs for a variety of mounting methods
  • Clean cover edges provide good gasket sealing.
  • Securely fastened mounting plates reduce costly call backs
  • Precision cast and machined surfaces permit safer wire pulling.
  • Clear UL and cubic content markings speed approval by inspectors
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.

Application

  • Junction box for branch conduits
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations

General

  • Material: Die Cast Aluminum
  • Color: Silver
  • Finish: Powder-Coated
  • Volume (cu.in.): 31.8
  • Number of Gangs: Two

Dimension Information

  • C (inches): 2 1/16
  • F (inches): 3 1/2
  • A (inches): 4 9/16
  • D (inches): 5/8
  • L (inches): 3 1/4
  • M (inches): 3 9/16
  • B (inches): 4 5/8
  • H (inches): 3 3/4
  • G (inches): 3 11/16
  • J (inches): 1 1/2
  • Hub Size (inches): 3/4
  • E (inches): 5

Packaging

  • T&B Sold in UOM: Each
  • Inner Package: 1
  • Package Length: 10.5
  • T&B Weight Per UOM: 0.86 lbs. Each
  • Outer Package: 10
  • Package Width: 9.7
  • Package Height: 5.4

Application Support

Notes

  • Rain tight when used with appropriate Red Dot covers.

Certifications

  • UL
  • RoHS Compliance: Yes

Overview

Codale Part No. 106302
Product Long Description Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 4 Outlets with 2 on Top and 1 on Bottom and Back
Material Die Cast Aluminum
Color Silver
Finish Powder-Coated
Product UPC 04226939430
Finish Powder-Coated
Width 117.475 mm
Color Silver
Type Universal, 4-Outlet, Rectangular, Raintight
Material Aluminum
Applications Dry-Tite Boxes and Covers Protect Wiring Devices, Switches, Electronic Components and Terminal Blocks in Dry, Damp and Wet Locations
Height 5.4 in
Family Brand Name Red Dot
Number of Gangs 2 Gang
Length 115.87 mm
Mounting Type Screw
Depth 52.3748 mm
Cable Entry 3/4 in Hub
Sub Brand Red Dot
