LEVITON 5611-2W SP WHITE LIGHTED DECORA SWITCH 15AMP 120/277V
$15.95/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 5611-2W
Codale Part # 43172

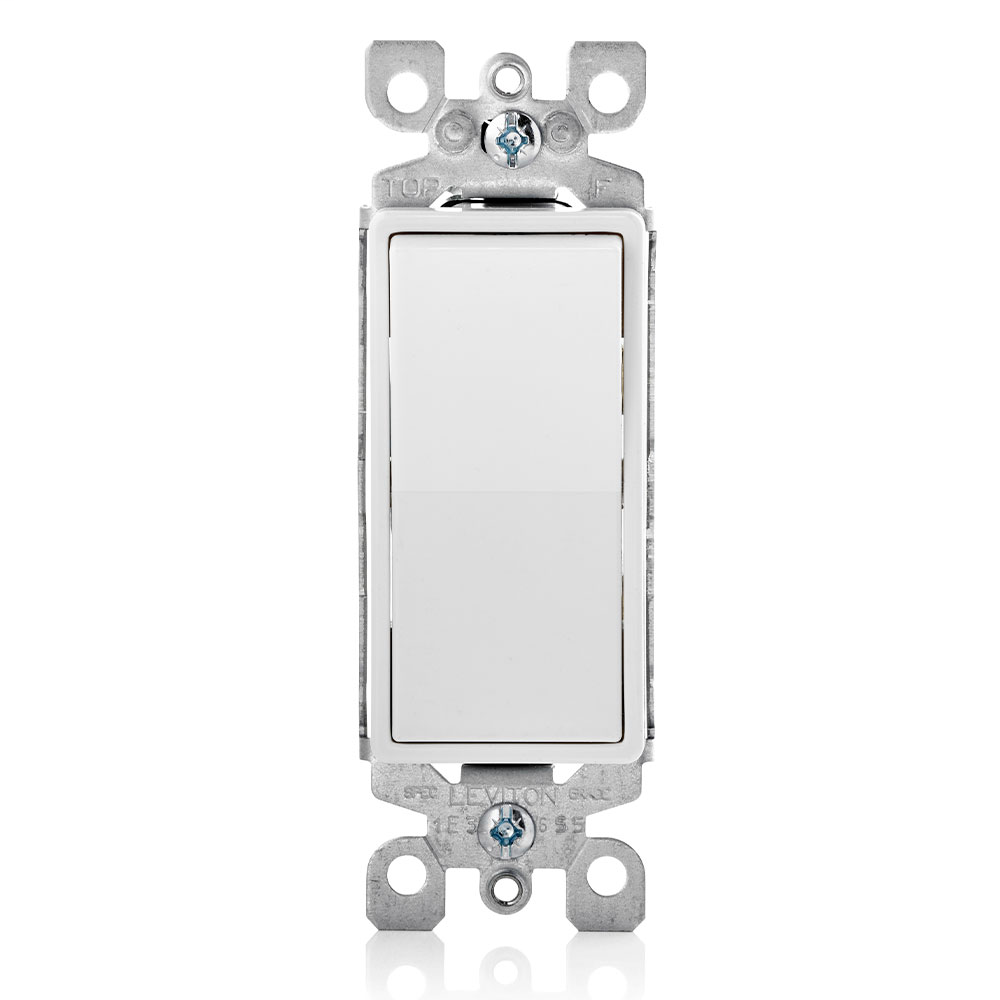

LEVITON 5611-2W SP WHITE LIGHTED DECORA SWITCH 15AMP 120/277V

Overview

UPC 07847751808
Catalog Description 15 Amp, 120/277 Volt, Decora Rocker Lighted Handle, Illuminated Off Single-Pole AC Quiet Switch, Residential Grade, Grounding, White
Codale Part No. 43172
Color White
Warranty length 2-Year Limited
Body Material Thermoplastic
Grounding Grounding
Termination Quickwire Push-In & Side
Product Short Description 15 Amp, 120/277 Volt, Decora Rocker Single-Pole AC Quiet Switch, Residential Grade, Illuminated When Off, Grounding, Quickwire Push-In & Side Wired - White NOTE: When connected to compact fluorescent lamps or LEDs, the bulb may flicker while switch is in the off position.
MDM Item Long Description 15 Amp, 120/277 Volt
MDM Pkg GTiN 00078477518083
Warranty Length 2 yr
Size 46 H x 1.30 W IN
Color White
Operating Temperature -40 To 120 C
Voltage 120/277 Volt
Type Illuminated, AC Quiet
Material Thermoplastic
Terminal Type Screw, Grounded
Applications For Residential use
Mounting Type Wallplate
Country of Origin United States
Standard CSA,UL
Connection Type Quickwired,Side Wire
Horsepower 1/2 hp
Body Material Thermoplastic
Temperature Rating -40 to 120 C
Family Brand Name Leviton
Grounding Grounding
Tc Connection Quick Wire, Side Wir
Actuator Rocker
Amperage 15 Amp
Max Current 12 A
Blade Dimensions 1.3 in W x 4.06 in H
Environmental Conditions UL 94 Requirements,
Contact Rating 120/277 VAC, 15 A
Number of Poles 1
Indicator Illuminated
Sub Brand Decora
