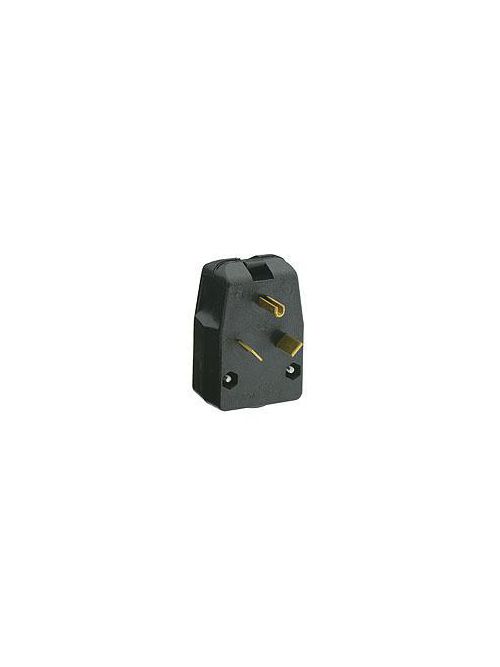

Leviton 830-T 125 Volt 30 Amp 2-Pole 3-Wire NEMA TT-30P 2 Hp Black Thermoplastic Grounding Angled Polarized Straight Blade Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$23.67/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Leviton
Mfg Catalog # 830-T
Codale Part # 43274

Specifications

Material Specifications

  • Color: Black
  • Blades/Contacts: Brass
  • Body Material: Thermoplastic
  • Assembly Screws: Steel, Zinc Plated

Standards and Certifications

  • Warranty: 2-Year Limited
  • NOM: 057
  • CSA C22.2 No. 42: File 152105
  • UL498: File E13399
  • ANSI: C-73
  • NEMA: WD-6

Electrical Specifications

  • Amperage: 30 A
  • Wire: 3
  • Dielectric Voltage: Withstands 2000V per UL498
  • Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
  • Pole: 2
  • Current Limiting: Full Rated Current
  • Voltage: 125 VAC
  • Grounding: Grounding

Product Features

  • Color: Black
  • Warranty: 2-Year Limited
  • Country Of Origin: Mexico
  • NEMA: TT-30P

Mechanical Specifications

  • Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
  • Cord Range: .687 - .875
  • Product ID: Ratings are permanently marked on device
  • Terminal Accom.: Up to 4 AWG

AC Horsepower Ratings

  • At Rated Voltage: 2 HP

Environmental Specifications

  • Flammability: Rated V-2 per UL94
  • Operating Temperature: -40°C to 60°C

Overview

UPC 07847781663
Codale Part No. 43274
Color Black
Operating Temperature -40°C to 60°C
Flammability Rating Rated V-2 per UL94
Warranty length 2-Year Limited
Body Material Thermoplastic
Grounding Grounding
Item Long Description 30 Amp, 125 Volt, Travel Trailer Vinyl Grounding Angle Plug, Black
Warranty Length 2 yr
Size 3.49 H x 2.56 W IN
Color Black
Operating Temperature -40 C
Voltage 125 Volt
Type Angled Trailer
Material Super Tough Nylon
Conductor Size 14-6 AWG
Applications Industrial
Mounting Type Surface
Country of Origin Mexico
Wire Size 0.687-0.875 in
Standard ANSI C-73
Blade Type Brass
Horsepower 2 hp
Body Material Thermoplastic
Screw Type Steel,Zinc-Plated
Temperature Rating -40 to 60 C
Family Brand Name Leviton
Wire Count 3
NEMA TT-30P,WD-6
Dielectric 2000 V
Flamability Class Rated V-2 Per UL94
Grounding Grounding
Contact Material Brass
Amperage 30 Amp
Blade Dimensions 2.56 in W x 3.49 in H
Cord Size 0.687 - 0.875 in
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
Temperature Rise 150 %
Sub Brand Black & White
